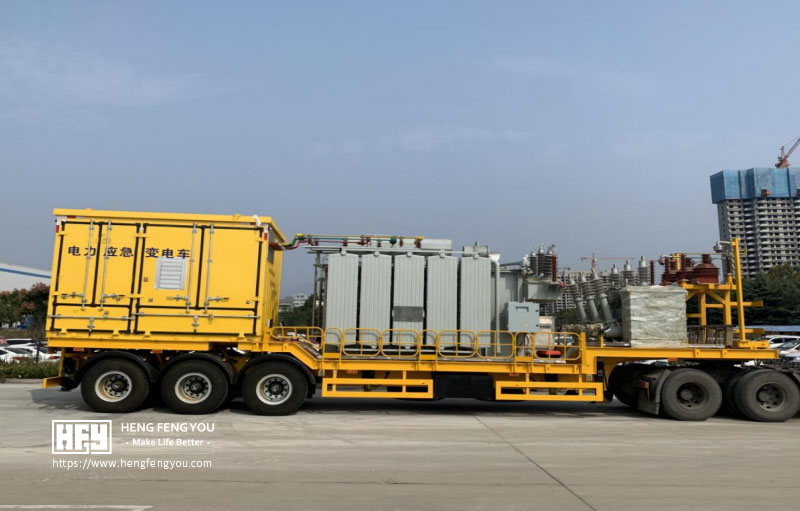

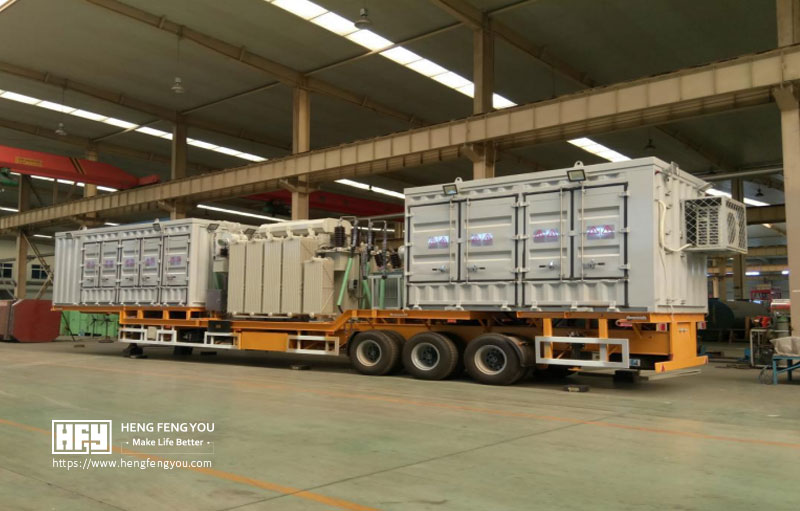

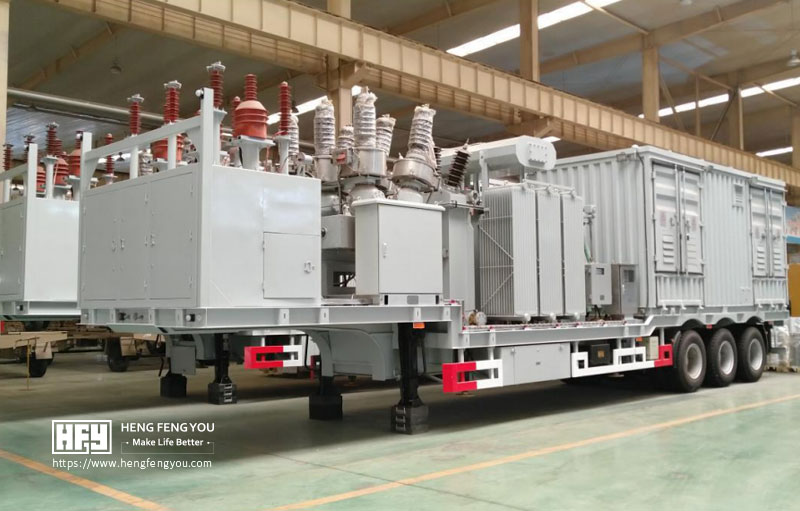

35 kv Vehicle Mounted Mobile Power Substation

35 kv Vehicle Mounted Mobile Power Substation

35kv Mobile Substation Advantage

---

-15 years of independent research and development, production, and sales experience both domestically and internationally.

-Production capacity: 30 units/year below 132kV; 120 units per year below 35kV.

-The 35kV/110kV vehicle mounted mobile transformer has been extensively validated for reliable operation in both domestic and international markets.

-The vehicle chassis is subjected to finite element analysis for strength calculation to ensure the reliability of the installed electrical equipment.

-The layout and load balancing of the equipment on the vehicle can better integrate with the vehicle, ensuring the reliability of equipment transportation.

-Designed to resist high humidity, heavy salt spray, high temperature, and sand.

35kv Mobile Substation Techical Specification

---

Q1:What are the core components of a 35kV vehicle mounted mobile substation?

*High voltage unit: 35kV GIS/HGIS switchgear

*Auxiliary systems: intelligent protection control cabinet, fire protection system, temperature control device

*Structural carrier: heavy-duty semi-trailer or modular container group

Q2:What are the typical application scenarios of 35kV mobile substations?

*Urban power grid: load transfer during substation renovation

*Industrial application: Temporary power supply for large-scale petrochemical/metallurgical projects

*Disaster relief: rapid reconstruction of power grid after earthquakes and floods (72 hour emergency response)

*Overseas projects: power infrastructure construction projects in countries along the the Belt and Road

Q3:What are the advantages of 35kV mobile substations compared to fixed substations?

Comparison Dimension: Vehicle mounted Mobile ;Traditional Fixed

Deployment time 3-7 days ;12-24 months

The investment cost is approximately RMB 8-20 million ; RMB 50 million+

The land demand is only 30 × 15m,;and permanent land acquisition is required for the site

The reuse rate can be recycled 5-8 times;fixed and immovable

Q4:What are the special requirements for the transportation and deployment of 35kV mobile substations?

*Highway transportation: Hydraulic axle trucks (total weight ≤ 80 tons) are required

*Shipping standard: Containers comply with ISO 1496 international shipping standards

*Positioning requirements: Foundation bearing capacity ≥ 150kPa, inclination<0.5 °

Q5:How long does it take for a 35kV mobile substation to be transported and put into operation?

*Regular deployment: 3-7 days (including debugging);

*Emergency mode: It can be put into operation within 48 hours at the fastest (pre installed and debugged).

Q6:Function of intelligent monitoring system for 35kV mobile substation

*Real time monitoring: DGA online oil chromatography analysis

*Warning function: Hot spot temperature over limit alarm (accuracy ± 1 ℃)

*Remote access: Supports IEC61850 communication protocol

*Standard SCADA system
