Mobile Power Substation

132 kv Vehicle Mounted Mobile Substation

  • Brand: HENGFENGYOU
  • Series: HVMM
  • USES: Mobile Substation
  • Country of origin: China
  • Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
  • Certification: ISO9001、CB、CE、KEMA

132 kv Vehicle Mounted Mobile Power Substation Global Procurement Guide
【Flexible and efficient power emergency solutions】

132kv Mobile Substation Overview
-The 132KV series vehicle mounted mobile Power substation (110-132kv) produced by Hengfengyou is a combined substation equipment that integrates primary and secondary electrical equipment and a load-bearing chassis. It integrates high and low voltage switchgear, high voltage power transformers, protection, communication, power supply and other devices to achieve the integration of substation and distribution, and to quickly provide reliable power supply. It can be fully customized according to user requirements.

-Due to the strong emergency response capability of vehicle mounted mobile substations, the demand for vehicle mounted mobile substations has been increasing worldwide in recent years, and the power transmission and operation rate of mobile substations has also been increasing year by year. Therefore, the market prospects of mobile substations are very broad.
-The products have been sold to South Africa, Tanzania, Ethiopia, Nigeria, Uzbekistan, Kazakhstan, Iran, the United Arab Emirates, Saudi Arabia, Iraq, Türkiye, Egypt, the United States, Canada, Mexico, Brazil, Ecuador and other markets and regions.
Product application: emergency repair of natural disasters, maintenance, renovation and upgrading of conventional substations, engineering support, temporary power supply, etc.

132 kv mobile substation,132 kv mobile substation price

132kv Mobile Substation Advantage
-15 years of independent research and development, production, and sales experience both domestically and internationally.
-Production capacity: 30 units/year below 132kV; 120 units per year below 35kV.
-The 35kV/110kV vehicle mounted mobile transformer has been extensively validated for reliable operation in both domestic and international markets.
-The vehicle chassis is subjected to finite element analysis for strength calculation to ensure the reliability of the installed electrical equipment.
-The layout and load balancing of the equipment on the vehicle can better integrate with the vehicle, ensuring the reliability of equipment transportation.
-Designed to resist high humidity, heavy salt spray, high temperature, and sand.


132kv Mobile Substation Techical Specification

Rated voltage: 110kv-132kv
Output voltage: 6.3kV -6.9kV -10.5kV -11.5kV -15.75kV -21kV
Rated capacity: 10MVA-63MVA
Personalized customization: can be fully customized according to user requirements.
Rated capacity Voltage Ratio Vector Group Cooling method Short circuit impedance
5000 35/6.3,35/10.5,33/11.5 ,33/6.9 Yd11 ONAN/ONAF 0.065
6300 35/6.3,35/10.5,33/11.5 ,33/6.9 Yd11 ONAN/ONAF 0.065
8000 35/6.3,35/10.5,33/11.5 ,33/6.9 Yd11 ONAN/ONAF 0.065
10000 35/6.3,35/10.5,33/11.5 ,33/6.9 Dy11 ONAN/ONAF 0.065
25000 66/13.8,66/11.5,66/21 Dyn11 ONAN/ONAF 0.075
31500 132/10.5,110/11.5,110/13.8,110/21 YNd11 ONAN/ONAF 0.105
40000 132/10.5,110/11.5,110/13.8,110/21 YNyn0d11 ONAN/ONAF 0.105
50000 132/10.5,110/11.5,110/13.8,110/21 YNd11 ONAN/ONAF/ODAF 0.17
63000 132/10.5,110/11.5,110/13.8,110/21 YNd11 ONAN/ONAF/ODAF 0.17

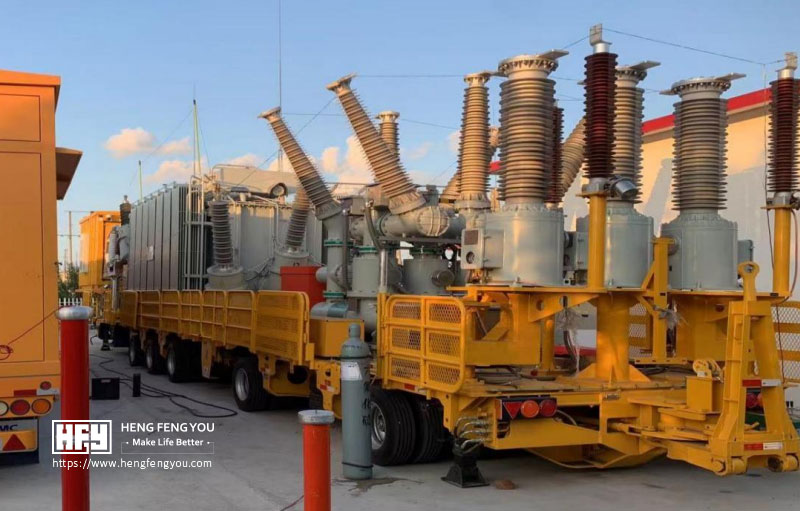

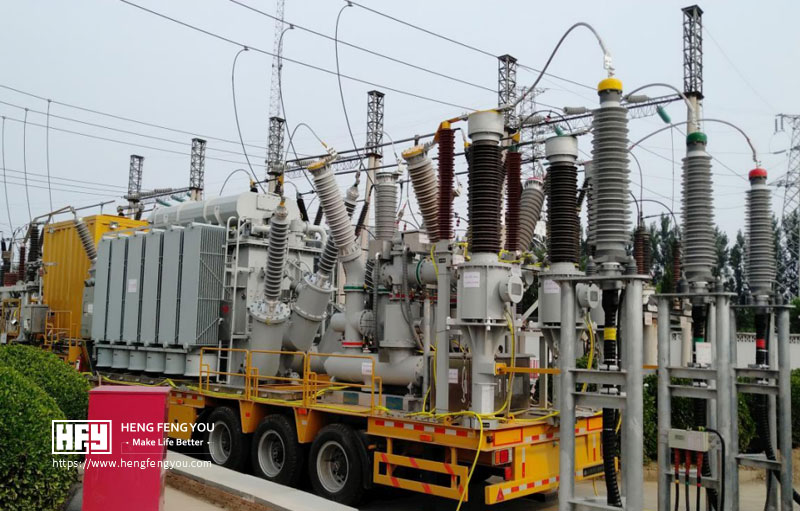

132kv Mobile Substation Case


Grow business with Hengfengyou
Our goal is to become the world's leading manufacturer of electrical equipment. The business, experience and technology accumulated over the years have benefited customers in more than 50 countries around the world. Once our customers establish a cooperative relationship, they are long-term trusted customers, because Hengfengyou always insists on providing you with our best electrical products and services.


132kv Mobile Substation FAQ

Q1:What are the core components of a 132kV vehicle mounted mobile substation?

*High voltage unit: 132kV GIS/HGIS switchgear

*Core equipment: 132/33kV or 132/11kV transformers (usually with a capacity of 40-120MVA)

*Auxiliary systems: intelligent protection control cabinet, fire protection system, temperature control device

*Structural carrier: heavy-duty semi-trailer or modular container group



Q2:What are the typical application scenarios of 132kV mobile substations?

*Urban power grid: load transfer during substation renovation

*Industrial application: Temporary power supply for large-scale petrochemical/metallurgical projects

*Disaster relief: rapid reconstruction of power grid after earthquakes and floods (72 hour emergency response)

*Overseas projects: power infrastructure construction projects in countries along the the Belt and Road



Q3:What are the advantages of 132kV mobile substations compared to fixed substations?

Comparison Dimension: Vehicle mounted Mobile ;Traditional Fixed

Deployment time 3-7 days ;12-24 months

The investment cost is approximately RMB 8-20 million ; RMB 50 million+

The land demand is only 30 × 15m,;and permanent land acquisition is required for the site

The reuse rate can be recycled 5-8 times;fixed and immovable



Q4:What are the special requirements for the transportation and deployment of 132kV mobile substations?

*Highway transportation: Hydraulic axle trucks (total weight ≤ 80 tons) are required

*Shipping standard: Containers comply with ISO 1496 international shipping standards

*Positioning requirements: Foundation bearing capacity ≥ 150kPa, inclination<0.5 °



Q5:How long does it take for a 132kV mobile substation to be transported and put into operation?

*Regular deployment: 3-7 days (including debugging);

*Emergency mode: It can be put into operation within 48 hours at the fastest (pre installed and debugged).



Q6:Function of intelligent monitoring system for 132kV mobile substation

*Real time monitoring: DGA online oil chromatography analysis

*Warning function: Hot spot temperature over limit alarm (accuracy ± 1 ℃)

*Remote access: Supports IEC61850 communication protocol

*Standard SCADA system



Q7:Extreme environmental adaptability of 132kV mobile substation

*High altitude: design for capacity reduction compensation at an altitude of 4000 meters

*Anti corrosion: C5-M level anti-corrosion coating (suitable for coastal areas)

*Low temperature start-up: -45 ℃ transformer oil special formula



Q8:Essential items for grid connection testing of 132kV mobile substations

1. Relay protection setting verification

2. Power quality testing (THD<2.5%)

3. Zero sequence impedance test

4. Load test (≥ 72 hours)



Q9:Key points for operation and maintenance management of 132kV mobile substations

*Daily inspection: SF6 gas pressure monitoring (≥ 0.4MPa at 20 ℃)

*Quarterly maintenance: Mechanical characteristic testing of circuit breakers

*Annual overhaul: Transformer oil dielectric loss detection (≤ 0.5%)



Q10:Typical fault handling scheme for 132kV mobile substation

Emergency measures for fault types

GIS leakage activation backup interval, supply air to 0.5MPa

Automatic start-up of standby fan unit due to transformer overheating

Control power failure and switch to UPS power supply (backup for 4 hours)



Q11:Life cycle cost analysis of 132kV mobile substation

*Purchase cost: ¥ 9-20 million (including tax)

*Single transportation cost: ¥ 150000 to ¥ 300000 (depending on distance)

*Annual maintenance fee: approximately 2-3% of the equipment value



Q12:Future technological upgrade direction of 132kV mobile substation

*Hybrid GIS technology (reducing 60% of footprint)

*Digital Twin Operation and Maintenance System

*Carbon neutral design (using natural ester insulating oil)
