• it is used for outdoor power or lighting distribution in three-phase AC distribution system below 660V

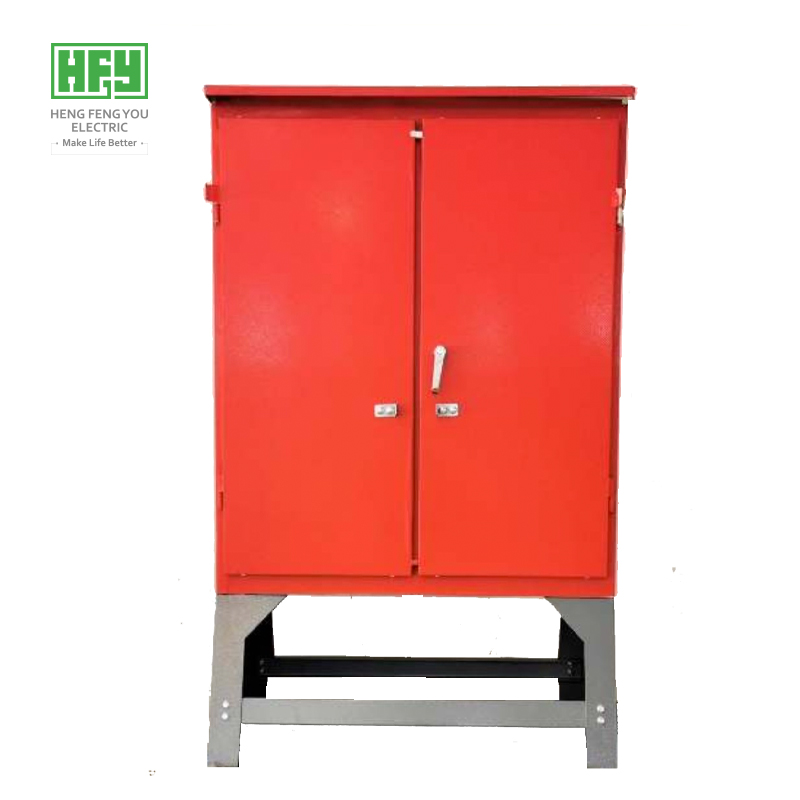

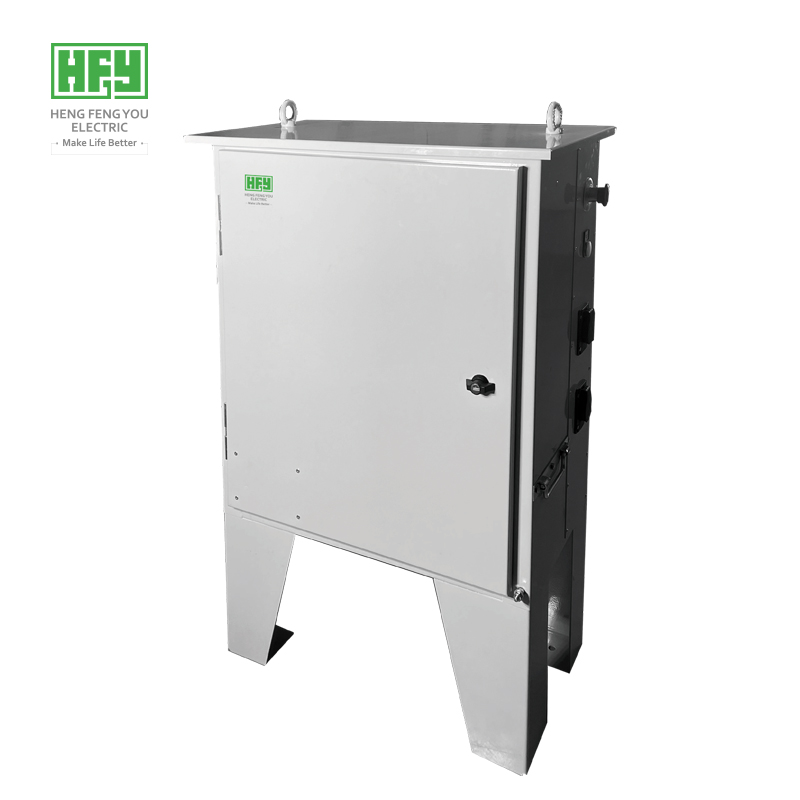

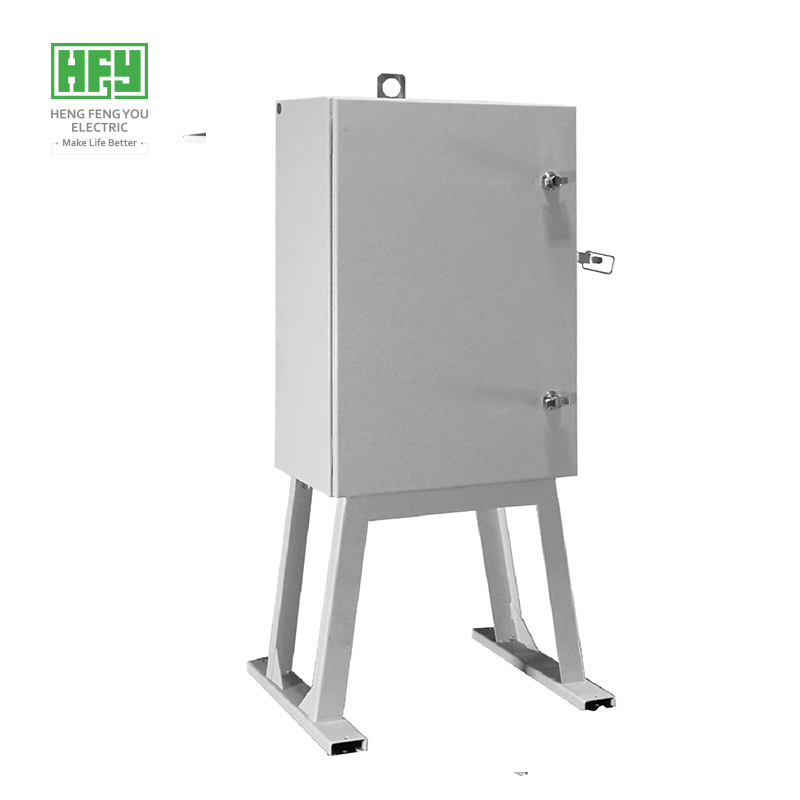

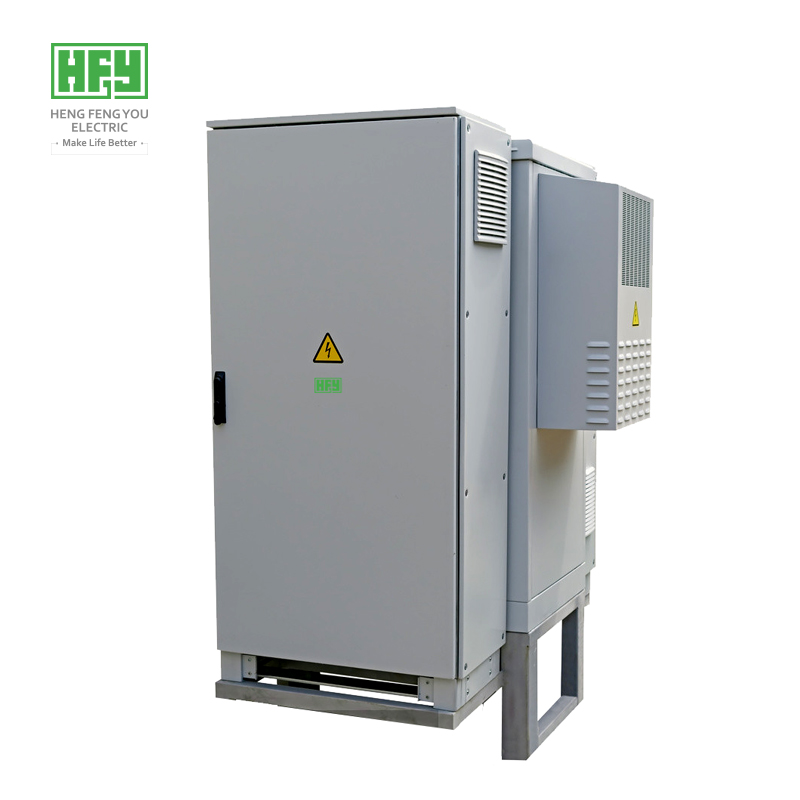

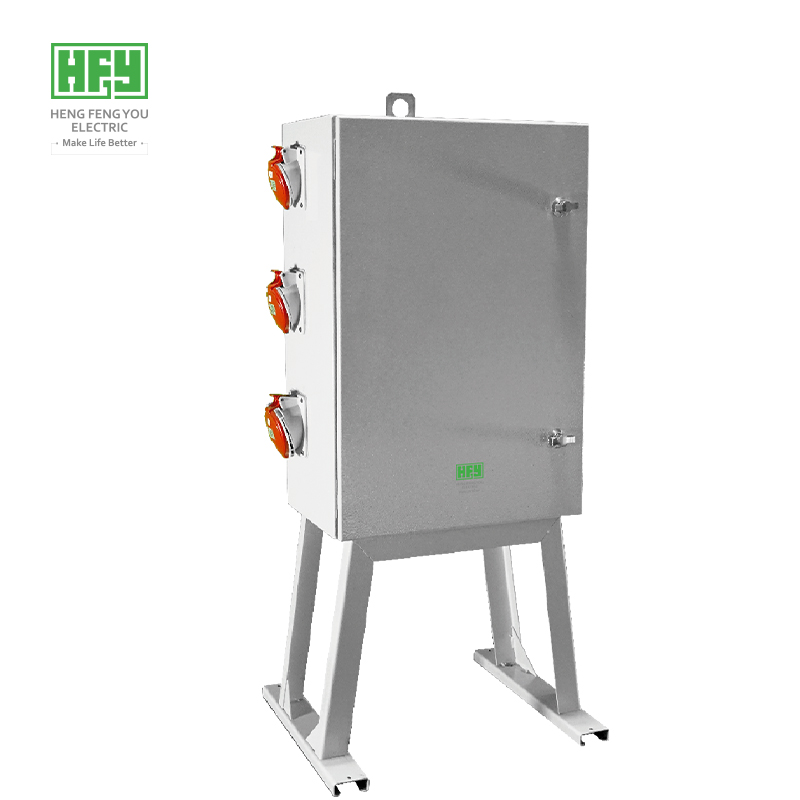

• Electrical Cabinet structure: single layer / double layer, single door / double door
• Electrical Cabinets and accessories are diversified and customized services can be provided
• Rated AC frequency: 50z / 60Hz, maximum working voltage: 660V, rated current: 800A
• High reliability of operation verification in more than 50 countries and regions around the world
• Mainly used in power generation enterprises, industrial and mining enterprises, housing construction and other fields
• The electrical performance fully complies with the relevant provisions of GB7251 and
IEC 60439
Product advantage
> Leading technology
- Standard anti-corrosion and salt spray environmental plan to meet the stringent environmental requirements of the site
- It can be equipped with circuit breakers of various domestic and foreign brands, such as Chint NXBF series, ABB TS200 series, Schneider A9/E9 series, etc
>Electrical Cabinet Features
-the whole is welded with 1.5mm high-quality cold-rolled hot-dip galvanized plate or stainless steelF
- cutting, punching and bending with laser numerical control equipment to ensure machining accuracy
-size and material can be specified and customized
- the cabinet is sprayed with RAL7035 outdoor plastic powder on both sides, and the paint will not come off for 50 years
> Functional units
- The door is equipped with voltage, current indicator meters and signal lights, buttons, transfer switches and other main command components
- New rotary load isolating switch is adopted in the box, which can be operated with load on the front
> Processing and assembly
- Dust-free workshop to ensure insulation
- Assembly workers have been trained for at least 6 months
Product parameters
>Waterproof grade IP56
Meet iec60529:2001 standard
For detailed parameters, please contact our salesperson
Conditions of use
- Altitude shall not exceed 2000m
- The ambient air temperature shall not be higher than +40 degrees, or less than -5 degrees
- ambient air humidity does not exceed 50%, low temperature allows a large relative temperature (e.g. +20 ° for 90%)
- Electrical components are free from corrosion and conductive dust
Ordering instructions
> The customer shall provide the following information:
- Box drawing
- Main circuit scheme diagram, secondary circuit system diagram and auxiliary circuit control mode
-Brand and model of main electrical components of the equipment
-Other special requirements can be negotiated with hengfengyou electric
Our Advantages
- Authoritative product certification: ISO CE, CB, CCC, etc
- Perfect SQA quality management system to ensure high quality products
- Quick quotation, can provide electrical design services
- The delivery period is short, and the fastest delivery time is 15 days worldwide
- Perfect after-sales service system, so that customers buy worry-free
