Product overview
• Rod transformer distribution cabinet under three-phase AC 660V (50/60Hz)
• Transformer capacity: 10, 20, 30, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630 (KVA)
• High reliability of operational validation in more than 50 countries and regions worldwide
• It is mainly used for outdoor pole transformer distribution
• Electrical performance in full compliance with GB7251 and IEC60439 related regulations
Product advantage
> Leading technology
• Standard anti-corrosion and salt spray environment plan, rain, leakage, lightning, electromagnetic interference to meet the stringent environmental requirements (IP65)
• The response is prompt and rapid, the compensation effect is good, the work is reliable, and the leakage protector can also be added according to the needs of users
• With over voltage, overload, under voltage, under current, short circuit, lack of phase, zero sequence over limit protection functions
• Automatic operation function: automatic recovery after power failure and 10s delay after power transmission
• Power factor can be increased to more than 0.95
> Cabinet put oneself in another's position

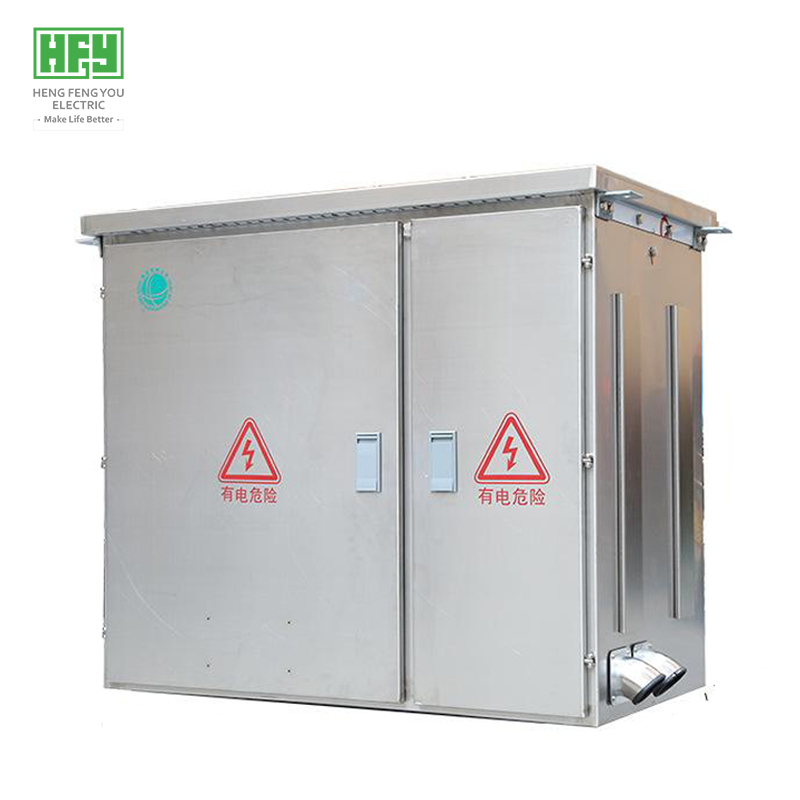

• The overall use of galvanized Angle steel skeleton coated with stainless steel plate
• Laser numerical control equipment cutting, drilling, bending, to ensure the processing accuracy
• Size and material can be customized
> Processing and assembly
• Dust-free workshop to ensure insulation
• Assembly workers have been trained for at least 6 months
• The secondary connection is fully automatic terminal crimping machine to ensure reliable connection
• All kinds of experimental tests before delivery to ensure the normal operation of the equipment
> Functional units
• According to different transformer capacities (100kVA and above), install integrated controller for power distribution monitoring and reactive compensation, measuring current transformers, metering current transformers, HR series isolation cutters, high-resolution automatic reclosing and leakage comprehensive protection outlet switches, composite solid-state relays, inlet and outlet terminals and other electrical components.

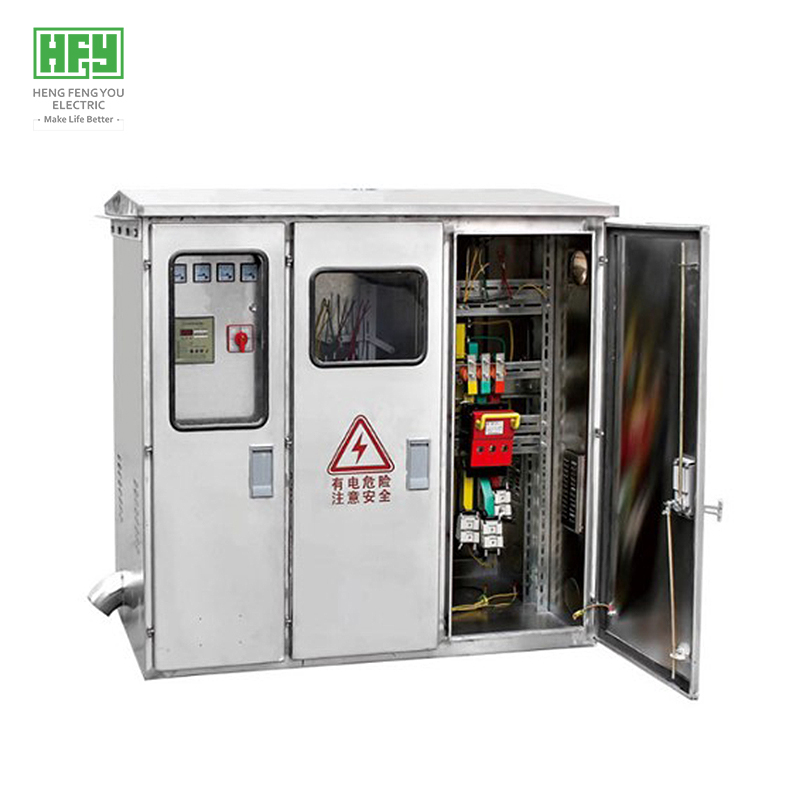

• The cabinet is divided into measuring room, isolation knife gate room, feed switch room and reactive power compensation room.
The electricity meter and metering transformer shall be in the same room and separated from other rooms by sealing plate. The door of the box can be sealed with lead seal and lock seal. The reactive power compensation room shall be separated from other rooms by galvanized steel plate of no less than 2mm.
• The power distribution cabinet adopts the side of the box to enter the wire. A special stainless steel waterproof elbow is set, and a waterproof rubber pad is arranged between the elbow and the box to facilitate cable wiring.
The outlet adopts two forms: the side outlet and the bottom outlet. The inlet and outlet outlet are sealed with epoxy resin plate of no less than 2mm.
• No matter whether the reactive power compensation device is installed or not, the internal structure, bracket and baffle of the box body are the same. The internal panel of the distribution box without on-line monitoring and reactive power control device is only reserved with no opening.
Product parameters
Conditions of use
• Altitude shall not exceed 2000m
• ambient air temperature: minimum -40℃, maximum +45℃, the average temperature within 24 hours does not exceed +35℃, the maximum temperature in the box is not higher than 65℃
• Humidity of ambient air does not exceed 95% (+25 degrees)
• Electrical components are not subject to corrosion and conductive dust
Ordering instructions
The customer shall provide the following information:
• Main circuit scheme diagram, secondary circuit system diagram and auxiliary circuit control mode
• Brand and model of main electrical components of the equipment
• Other special requirements can be negotiated with Hengfengyou Electric
