Amorphous Alloy Transformer

11KV Three Phase Amorphous Alloy Dry Type Distribution Transformer

Brand: HENGFENGYOU
Series: SCBH15
USES: 配电变压器
Country of origin: China
Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
Certification: ISO9001、CB、CE、KEMA

Get Quotes

Product overview

- Lower loss, energy saving and environmental protection, 70-80% energy saving than SCB9 series
- Actual measurement is better than GB and IEC standards
- Safer excellent fire performance F1 class
- With perfect temperature protection and control system, it can run at 150% rated load under forced air cooling conditions
- The high reliability verified by global operation has been exported to more than 50 countries and regions
- It is mainly used in 11KV urban distribution network, power supply and distribution system of industrial and mining enterprises and civil buildings
- Products are mainly sold to Tanzania, Zimbabwe, Ghana, South Africa, Kenya, Zambia, Sudan, Libya, Congo, Iraq, Syria, Bangladesh, and other countries and regions
- Executive standard: GB1094.11-2007, GB/T22072-2008 and IEC60076-11 standards;The product is H class (working temperature 180℃) heat resistant grade
- The shell materials are aluminum alloy, cold rolled steel plate, stainless steel, etc. (protection level IP20, IP23, etc.)

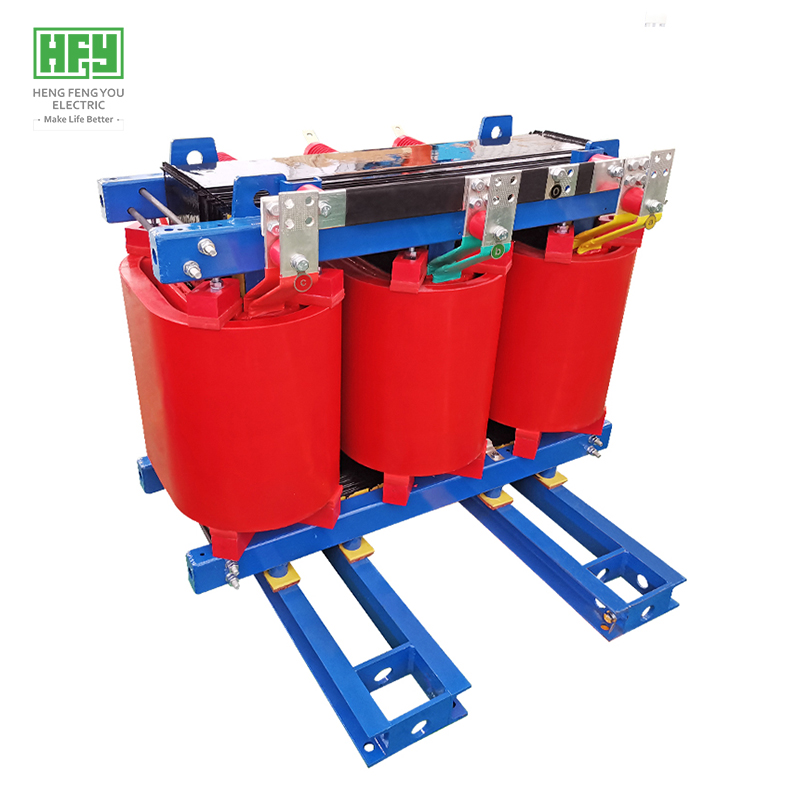

11KV Three Phase Amorphous Alloy Dry Type Distribution Transformer

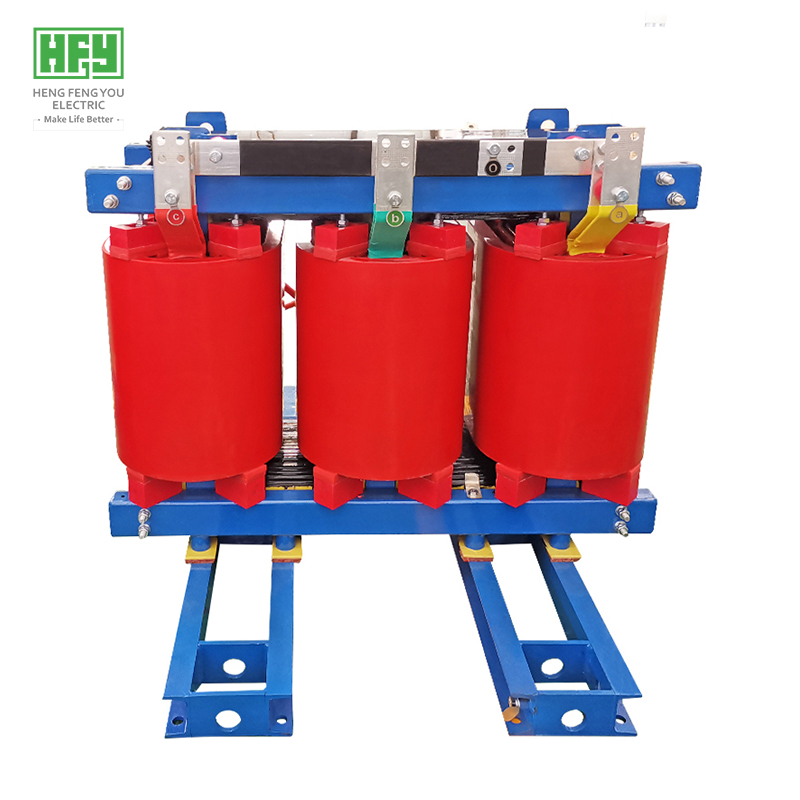

11KV Three Phase Amorphous Alloy Dry Type Distribution Transformer

Product advantage

- High pressure copper strip winding technology, flame retardant formula vacuum pouring

- Low pressure copper foil winding technology, thermosetting epoxy prepreg cloth insulation

- The high pressure coil is cast under high vacuum, and the casting material system is added with a unique flame retardant filler, which is a patented technology of Hengfengyou Electric

Product specifications

- Input voltage: 11kV
- Output voltage: 0.4kV
- Capacity: 30-2500 kva
- Remark: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements

type	Capacity （kVA）	voltage(kV)	Vector GroupSymbol	NO-load loss（kW)	Load loss (kW)	Short circuit impedance (%)	NO-load current(%)
SH15-M-30/10	30 kva	11.5kv 11kv 10.5kv	Dyn11 or Yyn0 or Yzn11	33	630/600	4.0	1.50
SH15-M-50/10	50 kva			43	910/870		1.20
SH15-M-63/10	63 kva			50	1090/1040		1.10
SH15-M-80/10	80 kva			60	1310/1250		1.00
SH15-M-100/10	100 kva			75	1580/1500		0.90
SBH15-M-125/10	125 kva			85	1890/1800		0.80
SBH15-M-160/10	160 kva			100	2310/2200		0.60
SBH15-M-200/10	200 kva			120	2730/2600		0.60
SBH15-M-250/10	250 kva			140	3200/3050		0.60
SBH15-M-315/10	315 kva			170	3830/3650		0.50
SBH15-M-400/10	400 kva			200	4520/4300		0.50
SBH15-M-500/10	500 kva			240	5410/5150		0.50
SBH15-M-630/10	630 kva			320	6200	4.5	0.30
SBH15-M-800/10	800 kva			380	7500		0.30
SBH15-M-1000/10	1000 kva			450	10300		0.30
SBH15-M-1250/10	1250 kva			530	12000		0.20
SBH15-M-1600/10	1600 kva			630	14500		0.20
SBH15-M-2000/10	2000 kva			750	18300	5.0	0.20
SBH15-M-2500/10	2500 kva			900	21200	5.0	0.20
