Amorphous Alloy Transformer

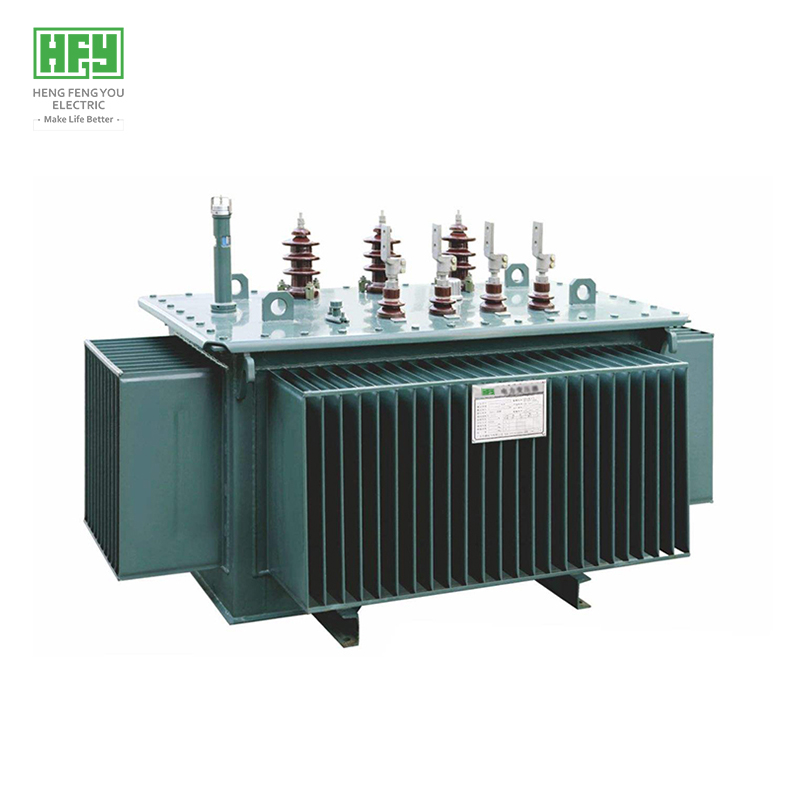

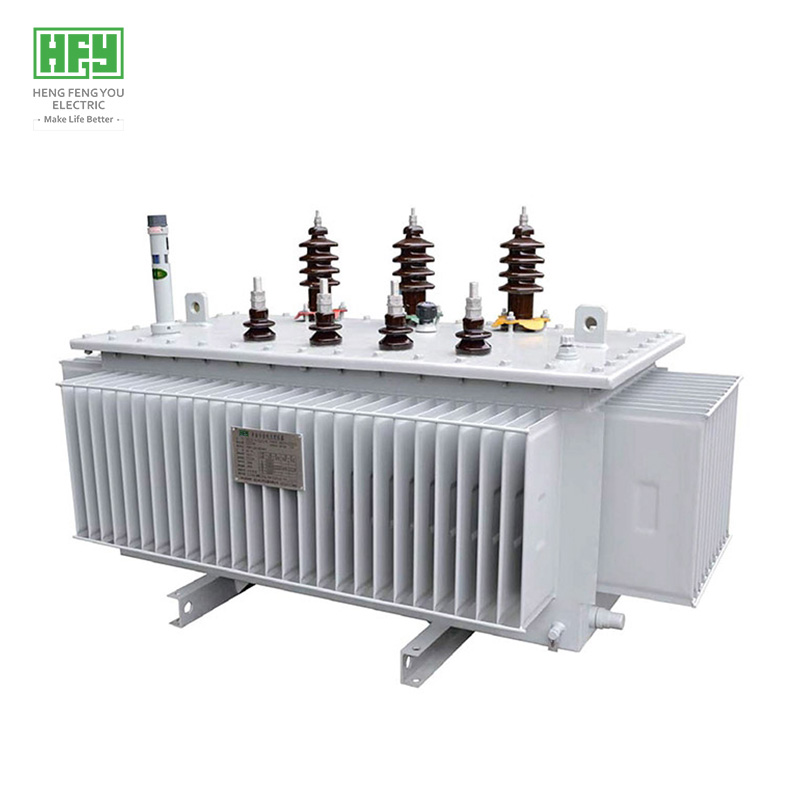

20kV Three Phase Amorphous Alloy Distribution Transformer

  • Brand: HENGFENGYOU
  • Series: SH15
  • USES: Distribution transformer
  • Country of origin: China
  • Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
  • Certification: ISO9001、CB、CE、KEMA

Product overview


  - Lower loss, 70-80% energy saving than S9 type transformer, can operate 120% rated load
  - Actual measurement is better than GB and IEC standards
  - More than 50 countries and regions around the world run verification of high reliability
  - It is mainly used in 20KV distribution network of national power grid, power supply and distribution system of industrial and mining enterprises and civil buildings
  - Products are mainly sold to Spain, Germany, France, Italy, Greece, Iceland, Finland, Iran, Romania, Bosnia and Herzegovina, Togo and other countries and regions
  - Executive standard: IEC 60076 series,NF EN;EN 50588-1


20kV Three Phase Amorphous Alloy Distribution Transformer
Product advantage

 - High pressure copper strip winding technology, flame retardant formula vacuum pouring
 - Low pressure copper foil winding technology, thermosetting epoxy prepreg cloth insulation
 - The high pressure coil is cast under high vacuum, and the casting material system is added with a unique flame retardant filler, which is a patented technology of Hengfengyou Electric




Product specifications

  - Input voltage: 20kV
  - Output voltage: 0.4kV
  - Capacity: 30-2500 kva
  - Frequency: 50 hz
  - Remark: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements

Capacity

(kVA)

H.V (kV)

 High pressure

  Tap range(%)

L.V(kV)

Vector
 GroupSymbol
NO-load

loss(kW)

Load loss

 (kW))

NO-load current

(%)

Short
circuit impedance

(%)

30

6
6.3

10
10.5
11


±2×2.5

±5


0.4

Dyn11

0.033

0.63/0.6

1.5

4.0

50

0.043

0.91/0.87

1.2

63

0.050

1.09/1.04

1.1

80

0.060

1.31/1.25

1

100

0.075

1.58/1.50

0.9

125

0.085

1.89/1.8

0.8

160

0.100

2.31/2.20

0.6

200

0.120

2.73/2.60

0.6

250

0.140

3.2/3.05

0.6

315

0.170

3.83/3.65

0.5

400

0.200

4.52/4.30

0.5

500

0.240

5.41/5.15

0.5

630

0.320

6.20

0.3

4.5

800

0.380

7.50

0.3

1000

0.450

10.3

0.3

1250

0.530

12

0.2

1600

0.630

14.5

0.2

5.0

2000

0.750

18.3

0.2

2500

0.900

21.2

0.2
