How to reduce no-load loss

Writer: Hengfeng you electric Time:2023-04-07 views:times

Through the analysis of no-load loss, the hysteresis loss and eddy current loss of iron core are mainly determined by the silicon steel sheet manufacturer, and the additional loss is determined by the transformer manufacturer. The magnetic flux density of the iron core is an important parameter affecting the no-load loss of the transformer iron core. Therefore, to reduce the no-load loss, it is necessary to make the magnetic flux density of each part of the iron core more uniform and reduce the magnetic flux density at the corner of the iron core on the premise that the useful section of the iron core remains unchanged.


1. The interlaced joint is changed to the third-order joint

As there is an open space in the silicon steel sheet joint of the transformer core, the magnetic flux increases sharply through the joint, so the magnetic flux has to bypass the open space of the joint and enter the adjacent laminations through the sheets, and then part of the magnetic circuit increases, and the magnetic resistance across the sheets increases, which also increases the magnetic density of the adjacent laminations, resulting in the increase of no-load loss and excitation capacity.

The more the number of joints in the transformer core, the lower the partial loss in the joint area, but the smaller the decline of partial loss. The number of iron core laminations, the working hours of silicon steel sheet shearing and iron core lamination and the process difficulty of iron core lamination will increase with the addition of joint number.

In practice, considering that with the addition of stages, the working hours of silicon steel sheet shearing and iron core lamination are added accordingly, and the lamination process becomes worse. Considering that if the three-level joint is selected and the appropriate sheet type is selected, only one sheet type is added to the core column, the process complexity is slightly added, and the magnetic function is significantly improved. The three-stage joint of the iron core is made of three types of laminations in turn. According to the technological level of metallurgical electric repair enterprises and the magnetic function data of joints, the selection of three-level joints is an ideal choice to improve the iron core of interleaved joints.

Taking s9-800 / 10 and s9-1000 / 10 power transformers as examples, the same planning scheme, structure and materials are selected for the same transformer, and different lapping methods are selected for the iron core. Among them, 4 sets of 800kVA are selected for interleaving joints, 3 sets are selected for three-level joints, 2 sets of 1000KVA are selected for interleaving joints, and 3 sets are selected for three-level joints.

Through the experimental data, it can be concluded that the no-load loss of the three-stage joint is about 7% ~ 8% lower than that of the interleaved joint when the section of the iron core column is unchanged. Only one sheet type is added to the core column for the tertiary joint, and the shearing of silicon steel sheet and the stacking time of iron core are slightly added, but the effect is remarkablehengfengyou electric transformer

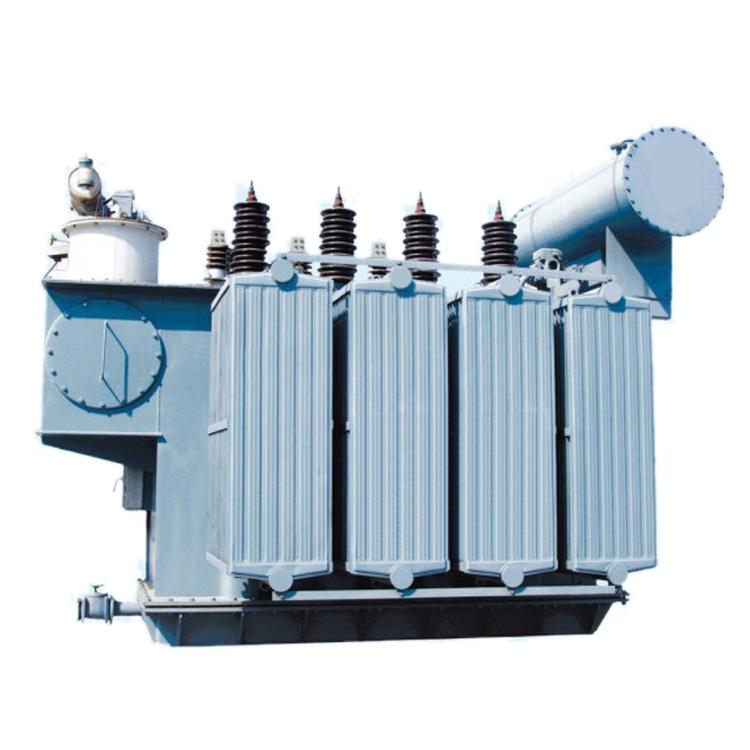

2. Reduce the overlapping width of iron core and reduce the no-load loss of iron core

At the corner of the core lamination, the overlapping width of the joint area between the core column and the cross yoke has a certain impact on the no-load function of the transformer. If the overlapping area is large, the area through which the magnetic flux passes will increase accordingly, and then the no-load loss will increase. According to the iron core model experiment, the no-load loss of 45 ° joint will increase by 0.3% for every 1% of the lap area. To reduce the no-load loss, it is necessary to study and select the best lap area with no-load loss and mechanical strength on the premise of meeting the mechanical strength.

By changing the connection area of the laminated tower of the iron core, reducing the size of some triangular holes in the iron core and reducing some magnetic flux density at the triangular holes, the no-load loss of the transformer can be reduced. The original angle of iron core lamination of our company's distribution transformer is 10mm, but now it has been changed to 5mm, which has achieved certain consumption reduction. The outlet angle of the iron core lamination is changed from 10mm to 5mm, so that the cross-sectional area of the triangular hole at the corner of the iron core is added, and some magnetic flux density at the triangular hole must be reduced.


3. Reasonably select the iron chip width, reduce the iron core angular weight, reduce the iron core material and reduce the no-load loss

The no-load loss of the iron core is related to the unit iron loss of the iron core and the weight of the iron core, and the angular weight of the iron core is a part of the weight of the iron core, so the angular weight of the iron core not only affects the cost of the transformer, but also directly affects the no-load loss of the transformer.

The preconditions for discussing the rules of iron chip width selection and iron core angle weight change are:

(1) The number of stages of the iron core must be equal.

(2) The diameter of the iron core is D, and the main stage sheet width of the iron core shall be selected according to D minus 5mm or 10mm. Unequal core diameters are formed by the sheet width and stack thickness at all levels. The maximum first-order difference between the two cores is controlled below + 0.3mm, that is, the winding package cannot be affected due to the out of tolerance of core diameter.

(3) The useful cross-sectional area of iron cores with different sheet shapes is equal in theory.

This is intended to ensure that the same flux density is selected and the same unit iron loss is obtained.

(4) The slice width and stack thickness of the core column section are necessary to be in common with the core yoke section.

In the planning process, when selecting the sheet width of the main stage iron core after confirming the appropriate core diameter, it is advocated that the effect of selecting the sheet width D minus 10mm is better than that of D minus 5mm. Its advantages are as follows:

① The slice width at all levels decreases step by step;

② Under the condition of keeping the useful cross-sectional area of the iron core flat, the angular weight of the iron core is reduced;

③ The height of the iron core is reduced by 10mm, the overall height of the oil tank is also reduced by 10mm, and the materials of the transformer are also saved



The above information is provided by Qingdao hengfengyou Electrical Engineering Co., Ltd. for more consultation, please contact: hfy@hengfengyou.com
