Hengfengyou Electrical Engineers Provide Several Measures to Control Transformer Leakage and Oil Leakage
Writer： Hengfeng you electric Time：2023-05-04 views：times

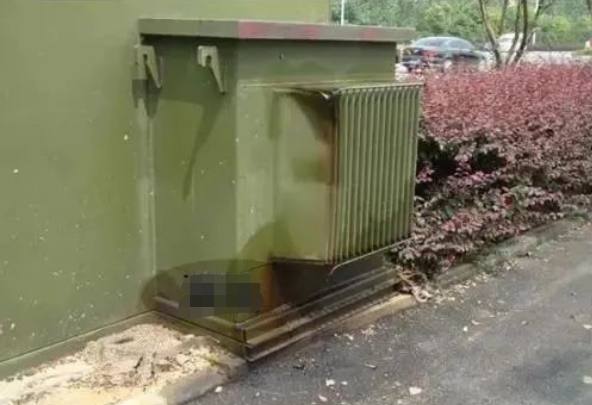

Before dealing with oil leakage, it is necessary to carefully analyze and identify the cause and exact point of leakage. For existing oil stains, first clean with cleaning agent, rinse with clean water, and finally repeatedly wipe with a clean cloth to find the exact location of the leakage point.
Using Welding to Control Transformer Oil Leakage
When oil leakage is found on the upper part of the transformer oil tank, only a small amount of oil needs to be drained before welding; When leakage is found in the lower part of the oil tank, due to the large waste of hanging core oil discharge and the limitations of on-site conditions, welding with oil can be used for treatment. Repair welding with oil should be carried out when the oil leakage is not significant, otherwise the vacuum drainage method should be used to cause negative pressure before welding. The vacuum degree of the negative pressure should not be too high, and it is advisable to have equal internal and external pressures to avoid inhaling molten iron. When repairing welding, the oil stains on the welding area should be removed thoroughly, and it is best to rinse with alkaline water before wiping dry; During the welding process, attention should be paid to preventing penetration and ignition, and the welding site must be below the oil level; During welding, intermittent and rapid spot welding should be used, and the arc ignition time should be controlled within 10-20 seconds. Long term continuous welding is absolutely not allowed.
When repairing pores with severe oil leakage, iron wires or other materials can be used to block or rivet them before welding; When welding near sealing rubber gaskets or other vulnerable components, cooling and protective measures should be taken.
Some netizens generally believe that there is oil leakage in the transformer body and accessories, and the transformer core must be lifted out and cleaned of oil before welding. Although this method is safe, it is time-consuming and labor-intensive, and can also affect electricity consumption.
Some people are afraid of causing transformer oil to catch fire. In fact, this fear is superfluous. Oil burning requires certain conditions, temperature and oxygen. However, when welding on the transformer body with oil, the oil will circulate convection when it is heated, and will lose heat quickly. Besides, there is no oxygen in the oil tank, so the transformer with oil leakage repair will not burn. However, the leaked oil is prone to combustion, and the airflow generated by combustion makes it difficult for the welding rod solution to fall into the cracks, resulting in welding difficulties.
Can this difficult problem be solved? Here are the specific methods for repairing transformer leakage with oil:

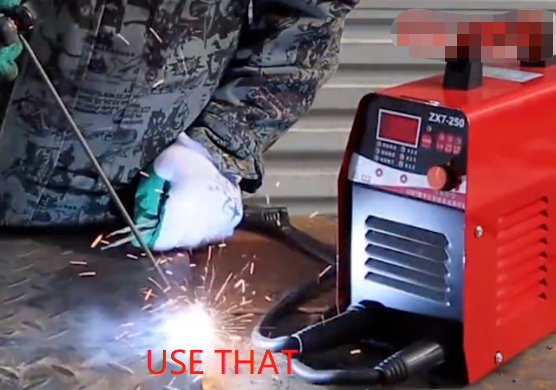

According to the characteristics that the heat will dissipate quickly when repairing with oil, arc welding welding shall be used for repair, and gas welding shall not be used.
In order to prevent the leaked oil from vaporizing and hindering welding, asbestos rope or other softer ropes can be used to plug the leakage joint before welding. For larger leaks, partial welding can be carried out, and when the leak is reduced to a single point, asbestos rope can be used to block the welding. If there is oil leakage from the device body, you can use a hammer to gently twist the oil leakage port and then weld it again.
The welding speed should be fast. For large gaps in the oil leakage area, it is best to stop welding for a while, and the welding time should not exceed 20 seconds each time. Wait for a few minutes before welding and let the oil cool down for a while.
If the oil leakage point is not obvious and only a slight oil leakage occurs, soap can be used to temporarily fill the leak. The method is to soak the soap in clean water and then apply it back and forth several times on the oil leakage point. This method is only a temporary measure, waiting for the opportunity to weld and repair the leak. However, one thing to note is that before welding, the power must be cut off and confirmed to be dead before proceeding. The oil filling hole screw on the conservator should be opened to allow air circulation. Prepare fire-fighting equipment such as sand and fire extinguishers at the same time, just in case.
Replacing Seals to Control Transformer Oil Leakage
The pressure bearing area of the sealing rubber should be adapted to the force of the screw, otherwise it is difficult to compress; When replacing the rubber sealing ring of the oil plug, the valve and channel at each inlet of the component should be closed, and the replacement should be carried out when the negative pressure of the component is maintained to a large amount of oil. The sealing element should have good oil resistance and aging resistance, good elasticity and mechanical properties. The sealing material should avoid the use of asbestos packing, cork pad and other materials as far as possible.
