Special Transformer

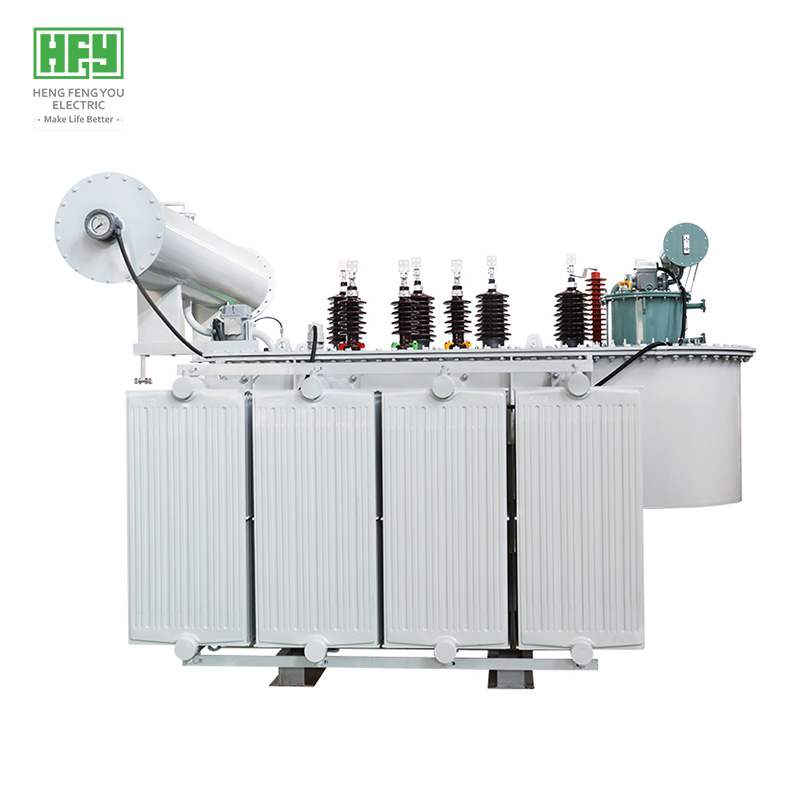

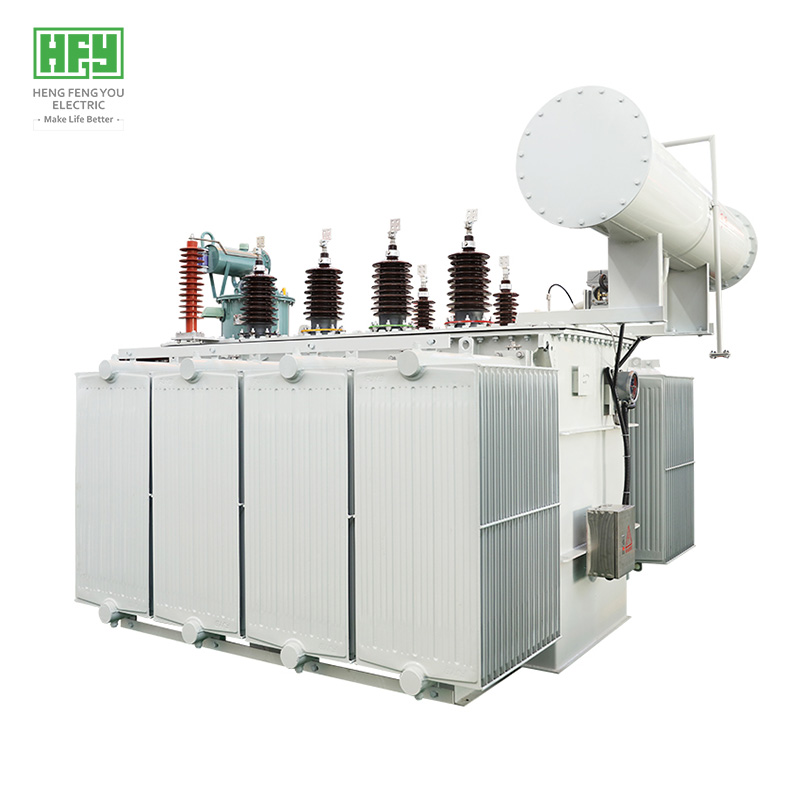

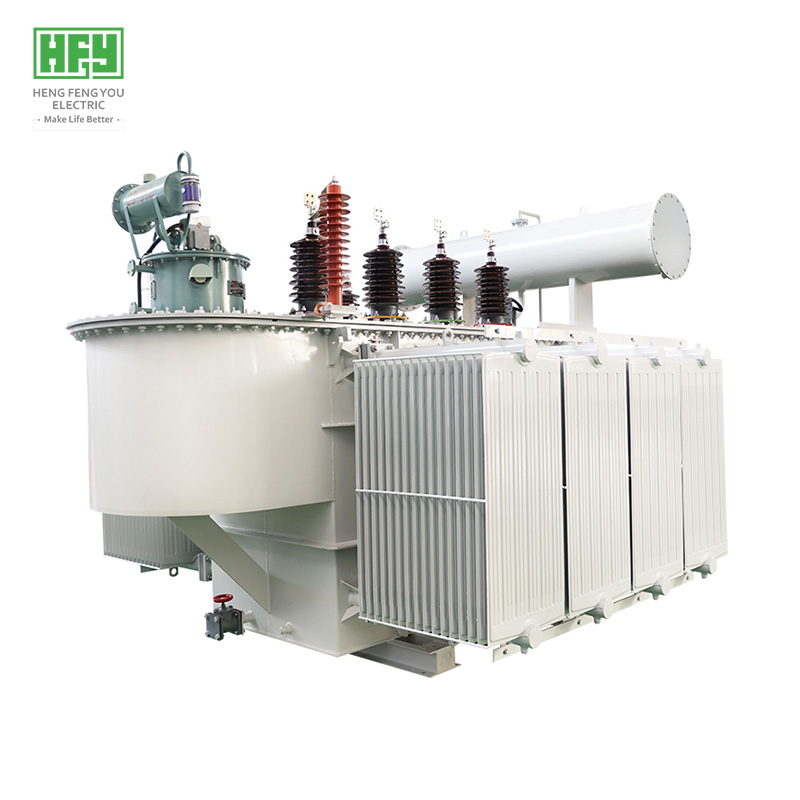

Rectifier transformer series

Brand: HENGFENGYOU
Series: Rectifier transformer series
USES: Professional solutions for chemical industry, traction DC power supply, transmission DC power supply, DC power transmission and other industries
Country of origin: China
Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
Certification: ISO9001、CB、CE、KEMA

Get Quotes

Rectifier transformer series overview

- Rectifying transformers are transformers that convert grid power into power required by rectifying equipment

-widely used in:
· The chemical industry (most used industry) electrolyzes nonferrous metal compounds to produce aluminum, magnesium, copper and other metals;

Electrolyzing salt to make chlorine-alkali;

Electrolysis of water to make hydrogen and oxygen

· DC power supply for traction, DC power grid for mine or city electric locomotives

DC power supply for transmission

· It is mainly used to supply power to DC motors in electric drive, such as armature and excitation of rolling mill

· For direct current transmission, the voltage of this kind of rectifier transformer is generally above 110kV, and the capacity is tens of thousands of kVA.

Special attention should be paid to the AC and DC superposition of ground insulation.

· Other applications include DC power for electroplating or electrical processing, DC power for excitation, DC power for charging and electrostatic dust removal, etc

- High reliability of operation verification in more than 50 countries and regions around the world

- Products are mainly sold to East Asia, Central Asia, Southeast Asia, South America, North America and other markets and regions

- Executive standard: IEC 60076 series

<a href='https://www.hengfengyou.com/products/special-transformer/139.html' target='_blank'><u>Rectifier transformer</u></a> series

Rectifier transformer series advantage

- Large capacity, low loss, low noise (65dB) is more energy efficient

- Superior performance indicators, the actual measurement is better than GB and IEC standards

- The product has strong over-load capacity and over-voltage capacity, and can run safely for a long time under rated load

- Strong impact resistance and short circuit resistance

- With microcomputer protection device (measurement, control, protection, communication, etc.)

Rectifier transformer series parameters

- Remarks: Voltage, capacity, frequency, connection group and loss can be customized according to customer requirements

(Table parameters are attached below)

For more information about electric furnace transformer, please contact our sales staff...

Business Cooperation

Grow business with Hengfengyou

Our goal is to become the world's leading manufacturer of electrical equipment. The business, experience and technology accumulated over the years have benefited customers in more than 50 countries around the world. Once our customers establish a cooperative relationship, they are long-term trusted customers, because Hengfengyou always insists on providing you with our best electrical products and services.

Our advantages

- Authoritative certification: ISO9001、CE、CCC、COC、UL、CSA, etc
- Perfect SQA quality management system and patented technology to ensure high quality products
- Efficient production equipment and low raw material prices to ensure the price advantage
- Sufficient inventory, short delivery time and fast delivery worldwide
- Perfect after-sales service system, allowing customers to buy worry-free
- Provide OEM/ODM services. Welcome clients to visit our factory.

Rectifier transformer series FAQ

What is a rectifier transformer?
A rectifier transformer is a special type of transformer designed to provide optimized power supply for rectifier systems, converting AC voltage to DC voltage efficiently.
What are the main applications of rectifier transformers?
They are commonly used in industries such as electrolysis, metal smelting, chemical processing, and HVDC power transmission.
How does a rectifier transformer differ from a standard power transformer?
Rectifier transformers are designed to handle high harmonic content and provide stable DC output, whereas standard transformers primarily deal with AC power distribution.
What are the key features of a high-quality rectifier transformer?
Key features include low impedance, high efficiency, robust insulation, and the ability to withstand high harmonic distortion.
What types of rectifier transformers are available?
Common types include 6-pulse, 12-pulse, and 24-pulse rectifier transformers, depending on the required DC output quality.
How do I select the right rectifier transformer for my application?
Consider factors such as input voltage, required DC output, load characteristics, and environmental conditions.
What maintenance is required for rectifier transformers?
Regular inspections, oil testing (for oil-cooled units), thermal monitoring, and checking connections help ensure long-term reliability.
Can rectifier transformers be customized?
Yes, manufacturers often provide custom designs based on voltage, current, cooling method, and specific industry requirements.
What are the common cooling methods for rectifier transformers?
Cooling options include ONAN (oil-natural air-natural), ONAF (oil-natural air-forced), and dry-type cooling for certain applications.
How do I troubleshoot common issues with rectifier transformers?
Common issues include overheating, voltage fluctuations, and harmonics. Solutions may involve checking load balance, cooling systems, and harmonic filters.
