Pole Monuted Transformer

167 kva Single Pole Mounted Transformer

  • Brand: HENGFENGYOU
  • Series: D11-M
  • USES: Distribution
  • Country of origin: China
  • Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
  • Certification: ISO9001、CB、CE、UL

Product overview


-Hengfengyou Electric is a professional manufacturer of distribution transformers with 30 years of manufacturing experience.
-The single-phase Pole-Mounted transformers designed and produced are usually used for urban and rural power distribution
-The product has been sold to countries and regions such asPhilippines, Australia, the United States, Japan, Dominica, Guyana, Honduras, Peru, Argentina, Venezuela, Chile and other countries and regions
-Input voltages:11kv, 12.4kv, 13.2kv, 13.8kv and 34.5kv; Output voltage:240 / 480v, 120 / 240V, etc.
-Executive Standards: IEEE C57, ANSI C57, IEC60076
167 kva Single Pole Mounted Transformer
Product advantages

-High voltage copper wire winding technology to improve lightning resistance performance

-Low voltage foil winding technology, high-quality A-E grade insulation material insulation

-Low magnetic leakage, high mechanical strength, and strong short-circuit resistance

-The material of the iron core is high-quality cold-rolled grain oriented silicon steel sheets with mineral oxide insulation (from Baosteel and Wuhan Iron and Steel Group in China)

-By controlling the process of cutting and stacking silicon steel sheets, the loss level, no-load current, and noise are minimized


Product specification

  - Input volt:34.5kv-19.92kv/13.8kv-7.957kv/13.2kv-7.62kv/12.47kv-7.2kv or others
  - Output volt: 120-240/240-480/347/600V or others
  - Capacity:20-160KVA,The maximum voltage is 36kV and the maximum capacity is 315KVA
  - Remark:Voltage, capacity, frequency, connection group and loss can be customized according to customer requirements


Tachnical Data for Single-Phase Pole Mounted Distributation Transformer
Power (KVA) High Voltage (V) Low Voltage (V) Loss(W) Dimension  (mm) Weight  (kg)
No-load Loss On-load Loss W D H
5kva 34500/ 19920 13800/ 7957 13200/ 7620 12470/ 7200 or others 120-240       240-480         347 600 19 75 465 485 855 92
10kva 36 120 500 525 885 150
15kva 50 195 520 565 905 210
25kva 80 290 560 590 935 258
37.5kva 105 360 610 625 935 340
50kva 135 500 635 675 1035 395
75kva 190 650 745 840 1035 480
100kva 210 850 770 965 1135 530
167kva 350 1410 795 890 1335 680

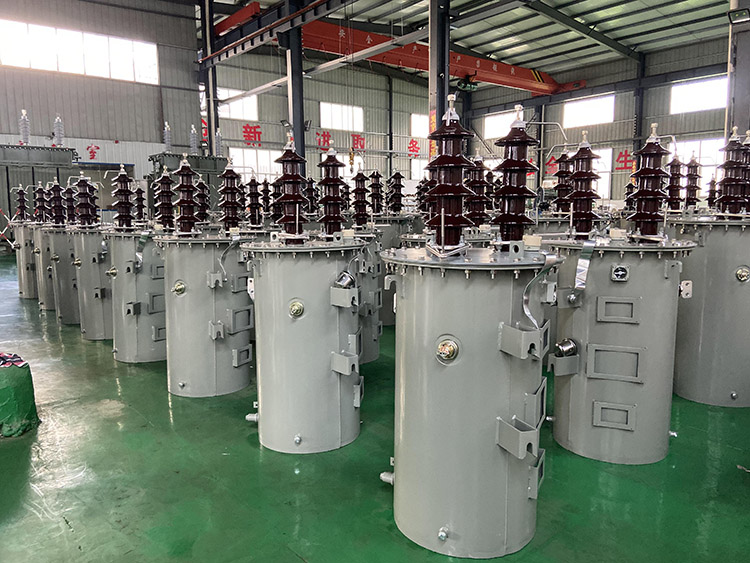

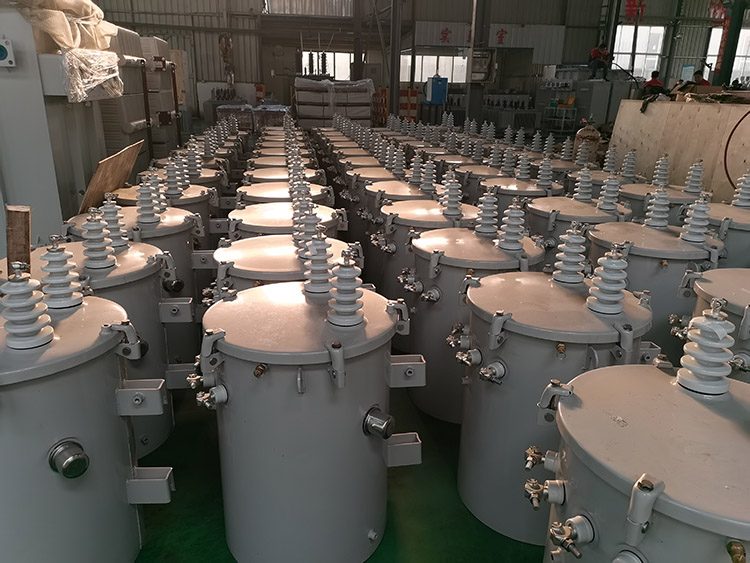

Case show



Business Cooperation


Grow business with Hengfengyou

Our goal is to become the world's leading manufacturer of electrical equipment. The business, experience and technology accumulated over the years have benefited customers in more than 50 countries around the world. Once our customers establish a cooperative relationship, they are long-term trusted customers, because Hengfengyou always insists on providing you with our best electrical products and services.



Our advantages


  - Authoritative certification: ISO9001、CE、CCC、COC、UL、CSA, etc
  - Perfect SQA quality management system and patented technology to ensure high quality products
  - Efficient production equipment and low raw material prices to ensure the price advantage
  - Sufficient inventory, short delivery time and  fast delivery worldwide
  - Perfect after-sales service system, allowing customers to buy worry-free
  - Provide OEM/ODM services. Welcome clients to visit our factory.
