Pole Monuted Transformer

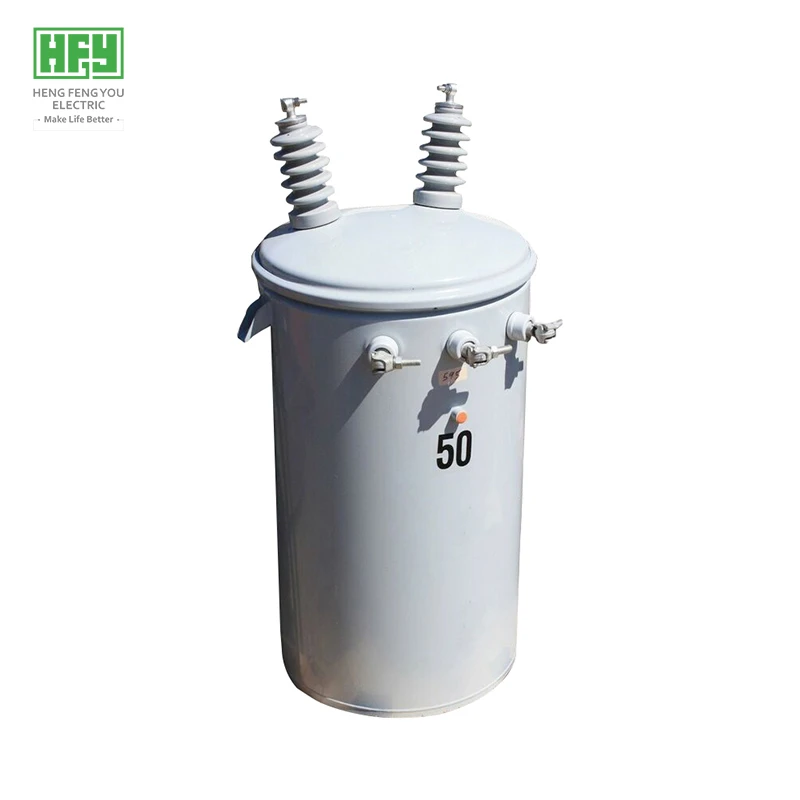

50 kva Single Pole Mounted Transformer

Brand: HENGFENGYOU
Series: D11-M
USES: Distribution
Country of origin: China
Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
Certification: ISO9001、CB、CE、UL

Get Quotes

Product overview

-Hengfengyou Electric is a professional manufacturer of distribution transformers with 30 years of manufacturing experience.

-The single-phase Pole-Mounted transformers designed and produced are usually used for urban and rural power distribution
-The product has been sold to countries and regions such asPhilippines, Australia, the United States, Japan, Dominica, Guyana, Honduras, Peru, Argentina, Venezuela, Chile and other countries and regions

-Input voltages：11kv, 12.4kv, 13.2kv, 13.8kv and 34.5kv; Output voltage：240 / 480v, 120 / 240V, etc.

-Executive Standards: IEEE C57, ANSI C57, IEC60076

Product advantages

-High voltage copper wire winding technology to improve lightning resistance performance

-Low voltage foil winding technology, high-quality A-E grade insulation material insulation

-Low magnetic leakage, high mechanical strength, and strong short-circuit resistance

-The material of the iron core is high-quality cold-rolled grain oriented silicon steel sheets with mineral oxide insulation (from Baosteel and Wuhan Iron and Steel Group in China)

-By controlling the process of cutting and stacking silicon steel sheets, the loss level, no-load current, and noise are minimized

Product specification

- Input volt：34.5kv-19.92kv/13.8kv-7.957kv/13.2kv-7.62kv/12.47kv-7.2kv or others
- Output volt： 120-240/240-480/347/600V or others
- Capacity：20-160KVA,The maximum voltage is 36kV and the maximum capacity is 315KVA
- Remark：Voltage, capacity, frequency, connection group and loss can be customized according to customer requirements

Tachnical Data for Single-Phase Pole Mounted Distributation Transformer
Power (KVA)	High Voltage (V)	Low Voltage (V)	Loss(W)		Dimension (mm)			Weight （kg）
			Loss(W)		Dimension (mm)
			No-load Loss	On-load Loss	W	D	H
5kva	34500/ 19920 13800/ 7957 13200/ 7620 12470/ 7200 or others	120-240 240-480 347 600	19	75	465	485	855	92
10kva			36	120	500	525	885	150
15kva			50	195	520	565	905	210
25kva			80	290	560	590	935	258
37.5kva			105	360	610	625	935	340
50kva			135	500	635	675	1035	395
75kva			190	650	745	840	1035	480
100kva			210	850	770	965	1135	530
167kva			350	1410	795	890	1335	680

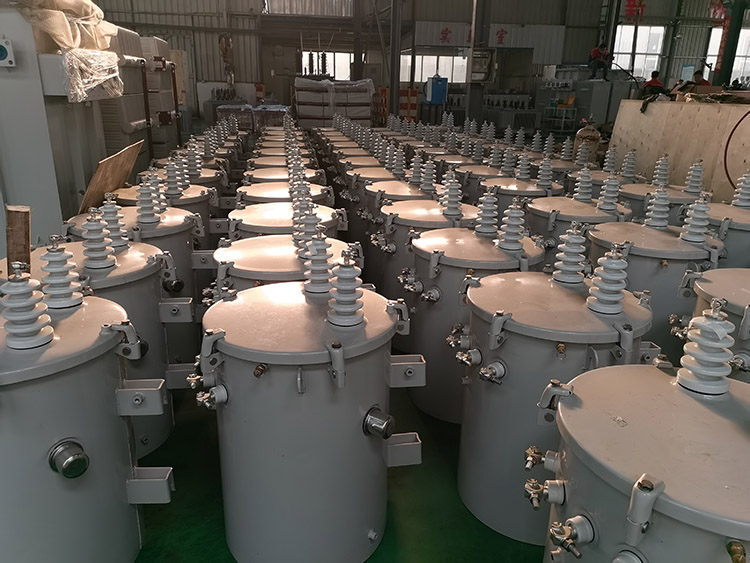

Case show

Business Cooperation

Grow business with Hengfengyou

Our goal is to become the world's leading manufacturer of electrical equipment. The business, experience and technology accumulated over the years have benefited customers in more than 50 countries around the world. Once our customers establish a cooperative relationship, they are long-term trusted customers, because Hengfengyou always insists on providing you with our best electrical products and services.

Our advantages

- Authoritative certification: ISO9001、CE、CCC、COC、UL、CSA, etc
- Perfect SQA quality management system and patented technology to ensure high quality products
- Efficient production equipment and low raw material prices to ensure the price advantage
- Sufficient inventory, short delivery time and fast delivery worldwide
- Perfect after-sales service system, allowing customers to buy worry-free
- Provide OEM/ODM services. Welcome clients to visit our factory.
