Power Transformer

66kv Oil-immersed Power Main Transformer

  • Brand: HENGFENGYOU
  • Series: SFZ
  • USES: Power distribution
  • Country of origin: China
  • Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
  • Certification: ISO9001、CB

66kv Power Transformer Overview


A 66kV transformer is a power transformer with a rated voltage of 66kV, mainly used for power grid transmission and distribution, new energy generation and grid connection, and industrial power consumption scenarios. Its design follows the international standard IEC 60076 and the Chinese national standard GB 1094, with a capacity range covering 3000kVA to 63000kVA, which can meet the power demand of different scales. This type of transformer is particularly suitable for environments with weak power grid structures and large load fluctuations, such as mines, chemical parks, offshore wind farms, and urban substations.



66kv Oil-immersed Transformer,66kv power Transformer price
20MVA-66kv Power Transformer

66kv Power Transformer Advantage


Leading technology
 - High voltage copper strip winding technology, improve lightning resistance

 - Low voltage copper foil winding technology, high quality A class insulation material insulation
 - Small magnetic leakage, high mechanical strength, strong resistance to short circuit
 - Core 45° fully oblique joint stepping laminated structure


66kv Power Transformer Type


For HENGFENGYOU ELECTRIC, a 66kV transformer can be a three-phase double winding transformer, a three-phase three winding transformer, or an autotransformer transformer. These types of transformers have the same principle, but their structures are different, and different types of transformers have different applications. HENGFENGYOU ELECTRIC provides you with the most ideal solution.
66kV three-phase double winding transformer
66kV three-phase three winding transformer
66kV autotransformer transformer

Get 66kv Power Transformer Price



66kv Power Transformer Technical Specifications


*Capacity range: 3000kVA~63000kVA (dual winding non excitation voltage regulation type)
*Voltage combination: High voltage side 63/66/69kV ± 5%, low voltage side 6.3/10.5/11kV
*Loss index:
*No load loss: 7.5kW (6300kVA) to 42kW (63000kVA)
*Load loss: 34kW (6300kVA) to 210kW (63000kVA)
*Short circuit impedance: 8%~12%, customizable according to load characteristics

S18-66kV Double winding Unexcited Voltage Regulating Power Transformer
额定容量
Rated capacity
(kva)
电压组合及分接范围
Voltage ratio(kv)
联结组
Connection symbol
空载损耗
No-load loss
(kw)
空载电流
No-load current
(%)
负载损耗
Full-load loss
(kw)
短路抗阻
Impedance(%)
高压
HV
高压分接范围
MV Tapping Range
低压
LV
6300 110
121
±2×2.5% 6.3
6.6 10.5
11
YNd11 9.2 0.60  36 9
8000 11.2 0.60  42.7
10000 13.2 0.55  50.4
12500 15.6 0.55  59.8
16000 18.8 0.50  73.5
20000 22.0  0.50  89.1
25000 26.0  0.45  105.3
31500 30.8 0.45  126.9
40000 36.8 0.40  148.9
50000 44.0  0.4 184.5
63000 52.0  0.35 222.3


S18-66kV dual winding on load tap changer power transformer
额定容量
Rated capacity
(kva)
电压组合及分接范围
Voltage ratio(kv)
联结组
Connection symbol
空载损耗
No-load loss
(kw)
空载电流
No-load current
(%)
负载损耗
Full-load loss
(kw)
短路抗阻
Impedance(%)
高压
HV
高压分接范围
MV Tapping Range
低压
LV
6300 63
66
69
±8×1.25% 6.3
6.6 10.5
11
YNd11 10 0.60  36 9
8000 12 0.60  42.7
10000 14.2 0.55  50.4
12500 16.8 0.55  59.8
16000 20.2 0.50  73.5
20000 24.0  0.50  89.1
25000 28.4  0.45  105.3
31500 33.7 0.45  126.9
40000 40.3 0.40  148.9
50000 47.6  0.4 184.5
63000 56.2  0.35 222.3

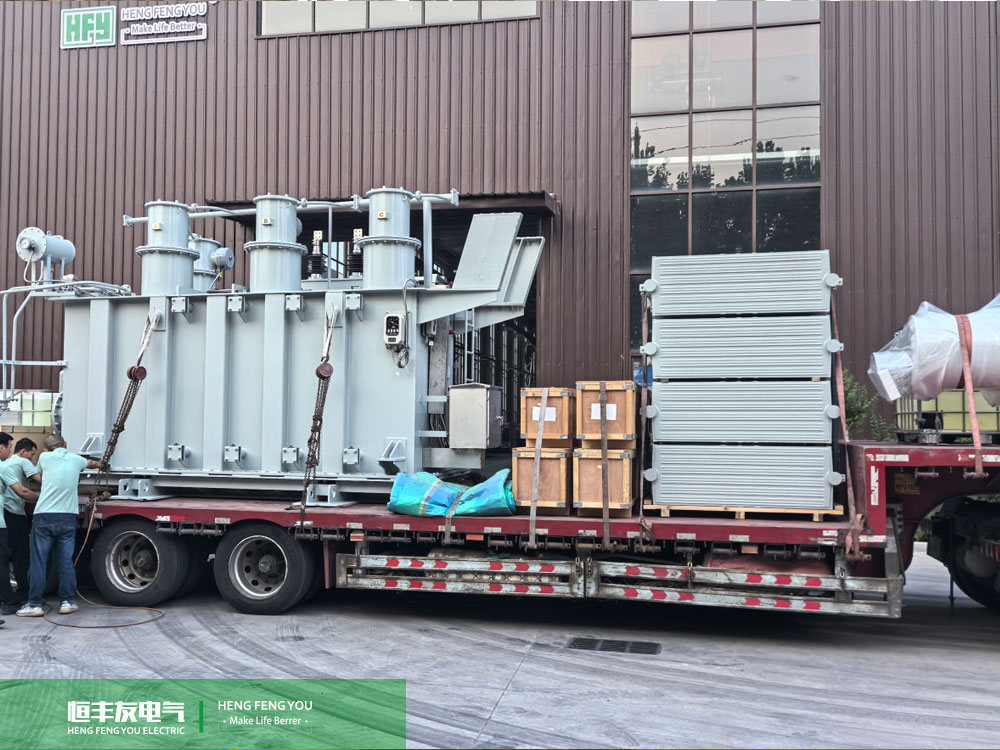

66kv Power Transformer Shipment



Grow business with HENGFENGYOU ELECTRIC

Our goal is to become the world's leading manufacturer of electrical equipment. The business, experience and technology accumulated over the years have benefited customers in more than 50 countries around the world. Once our customers establish a cooperative relationship, they are long-term trusted customers, because Hengfengyou always insists on providing you with our best electrical products and services.



66kv Power Transformer FAQ


 Q1:What are the typical application scenarios of 66kV transformers?

Suitable for urban power grid main substations, industrial park distribution systems, new energy power stations (such as wind/photovoltaic booster stations), high-voltage power supply in mines, and rail transit, meeting the demand for medium to high voltage energy conversion.

Q2:What is the no-load loss range of a 66kV oil immersed transformer?
According to different capacities, the no-load loss range is usually from 0.36kW (small capacity) to 41.6kW (63MVA large capacity), and the use of high permeability silicon steel sheets can further reduce losses by 5% -15%.

Q3:Can 66kV power transformers operate in extreme low temperature environments (such as -40 ℃)?
Yes, most 66kV transformers are designed with a temperature range of -45 ℃ to+40 ℃, and the oil tank uses low-temperature oil (such as BIOTEMP ester oil) and antifreeze structure to ensure stable operation in cold regions.

Q4:How to choose the short-circuit impedance value for 66kV power transformers?
The standard short-circuit impedance is 8%~12%, which needs to be customized according to the short-circuit capacity and load characteristics of the power grid. For example, high impedance transformers (12%) are suitable for industrial areas with high short-circuit currents.

Q5:What voltage regulation methods are supported by 66kV power transformers?
*Off Circuit Tap Changer: ± 5% voltage adjustment, power outage operation required.
*On load voltage regulation (OLTC): ± 8 × 1.25% dynamic adjustment, suitable for scenarios with frequent voltage fluctuations.

Q6:How to prevent transformer damage during the transportation of 66kV power transformers?
*Fixed with steel wire rope, the fuel tank is filled with nitrogen gas protection (pressure 0.01~0.03MPa).
*The speed limit for land transportation is ≤ 50km/h, and sea transportation should avoid salt spray corrosion areas.

Q7:Does the 66kV power transformer require regular replacement of insulation oil?
The fully sealed transformer adopts a 30-year maintenance free design and does not require oil change; It is recommended to test the oil quality of conventional transformers every 5 years (breakdown voltage ≥ 50kV, water content ≤ 15ppm).

Q8:Is the 66kV transformer compatible with renewable energy grid connection?
Supporting the integration of fluctuating power sources such as wind power and photovoltaics requires on load voltage regulation and intelligent temperature control systems to cope with sudden load changes (such as the case of a certain offshore wind farm in China).

Q9:What are the requirements for the foundation when installing a 66kV power transformer?
*The basic load-bearing capacity should be ≥ 1.2 times the weight of the equipment, and the horizontal deviation should be ≤ 2mm/m.
*Outdoor installation requires reserved firewalls (distance ≥ 1.5m) and oil discharge tanks (capacity ≥ 100% oil volume).

Q10:How can 66kV power transformers cope with high-altitude environments (such as above 3000 meters)?
Customized capacity reduction design is required (with a 6% capacity reduction for every 1000 meters of elevation) and strengthened insulation (such as increasing the creepage distance of the casing to 3150mm).

Q11:Does the noise level of 66kV power transformers meet environmental standards?
No load noise ≤ 65dB (A) (taking 63MVA as an example), in compliance with IEC 60076-10 standard. An additional soundproof cover can be installed to further reduce the noise level to below 55dB.

Q12:What are the contents of after-sales service for 66kV power transformers?
*Warranty period: usually 18 months after leaving the factory or 12 months after being put into operation (whichever comes first).
*Technical support: remote monitoring, fault diagnosis, and on-site maintenance (response time ≤ 72 hours).
