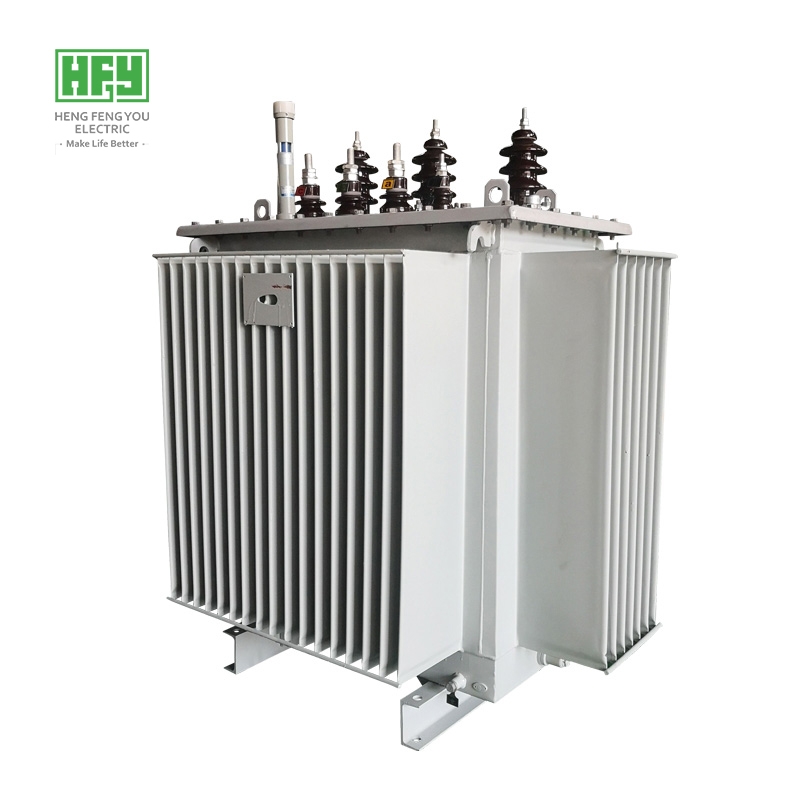

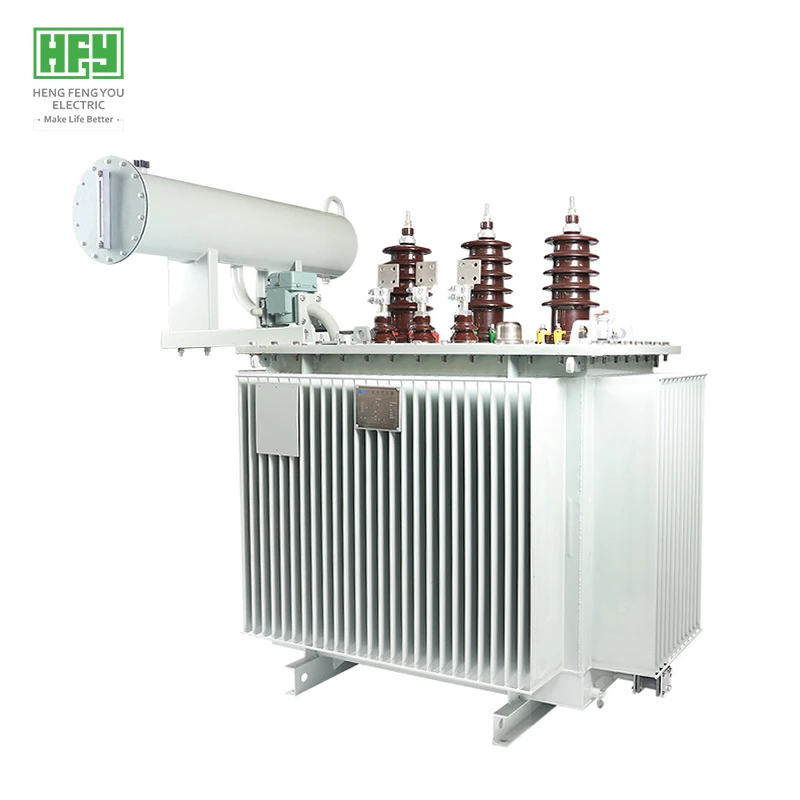

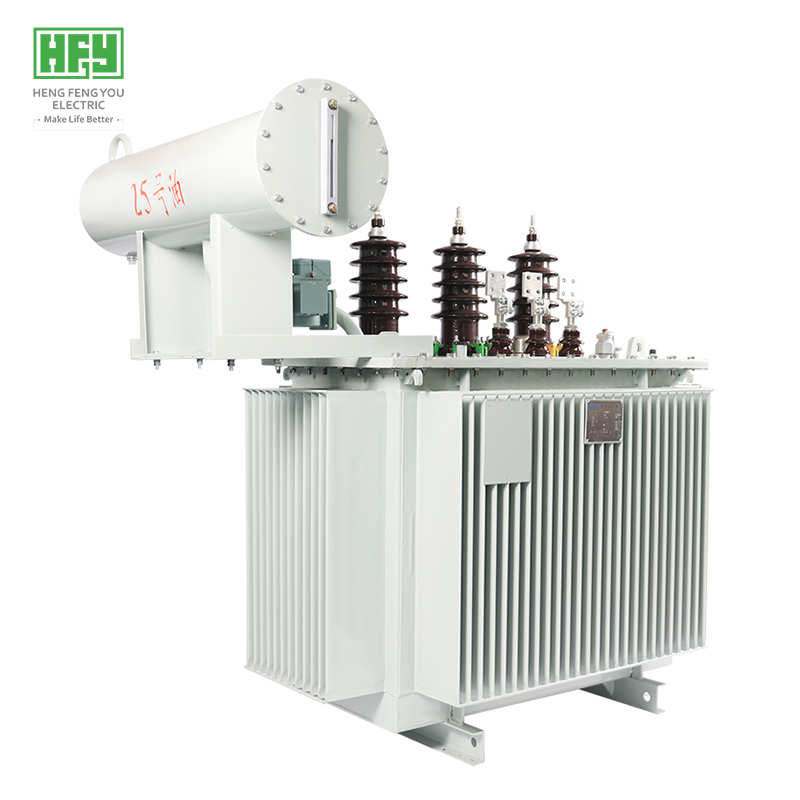

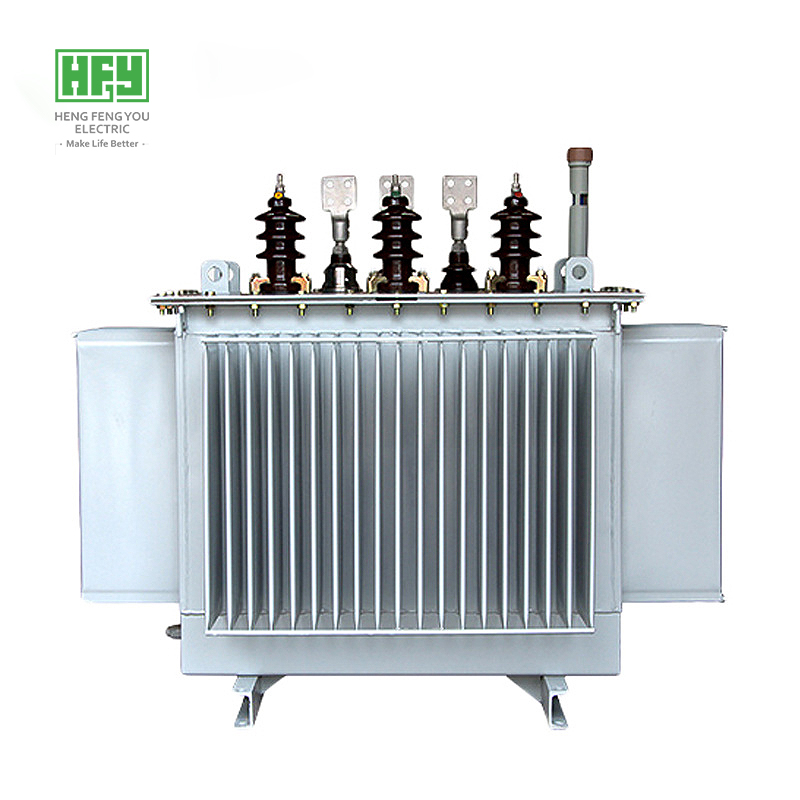

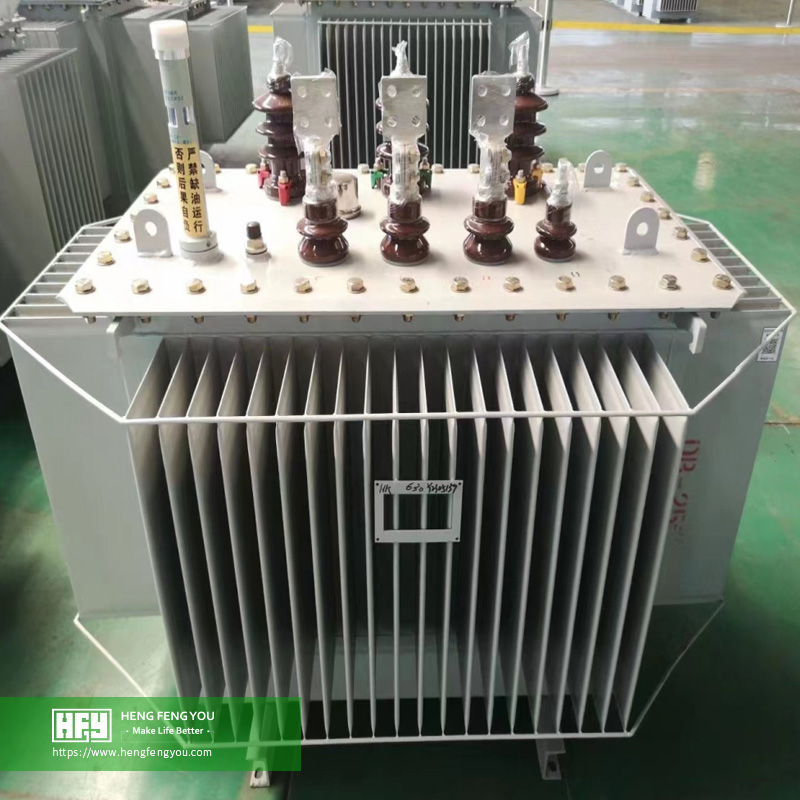

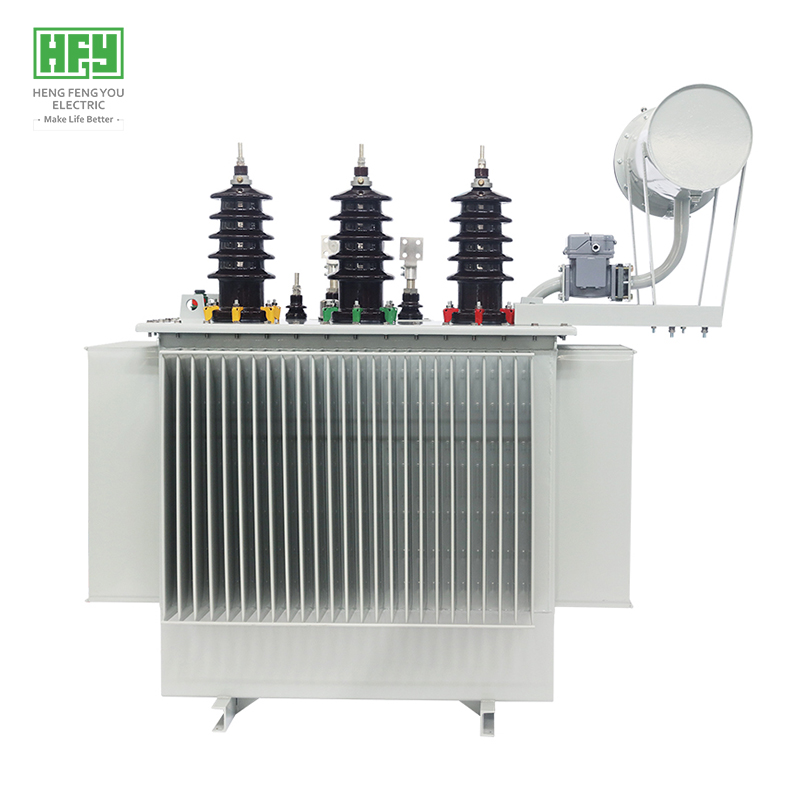

6.6KV Fully Sealed Three-phase Oil-immersed Power Plant Distribution Transformer

Product overview

  - Lower loss, more energy saving
  - The actual measurement of the product is better than GB and IEC standards
  - More than 50 countries and regions around the world run verification of high reliability
It is mainly used in 6.6KV distribution system of power generation enterprises and industrial and mining enterprises
  - Products are mainly sold to Tanzania, Zimbabwe, Ghana, South Africa, Kenya, Zambia, Sudan, Libya, Congo, Iraq, Syria, Bangladesh, and other countries and regions
  - Executive standard: IEC 60076 series, IEC 6013, IEC 60214-1, IEC 60296;GB1094 series, GB/T6451-2015, GB/T7597-2007, etc



Product advantage

- High voltage copper strip winding technology, improve lightning resistance

 - Low voltage copper foil winding technology, high quality A class insulation material insulation
 - Small magnetic leakage, high mechanical strength, strong resistance to short circuit
 - The iron core is made of high quality cold-rolled grain oriented silicon steel sheet with mineral oxide insulation (from Baosteel and WISCO of China).
 - By controlling the cutting and stacking process of silicon steel sheet, the loss level, no-load current and noise can be minimized

Roduct parameters

  - Input voltage: 11KV/6.6kv 33Kv/6.6kv
  - Output voltage: 6.6KV
  - Capacity: 50-5000 KVA
  - Frequency: 50HZ/60HZ
  - Remark: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements
