Oil-immersed Transformer

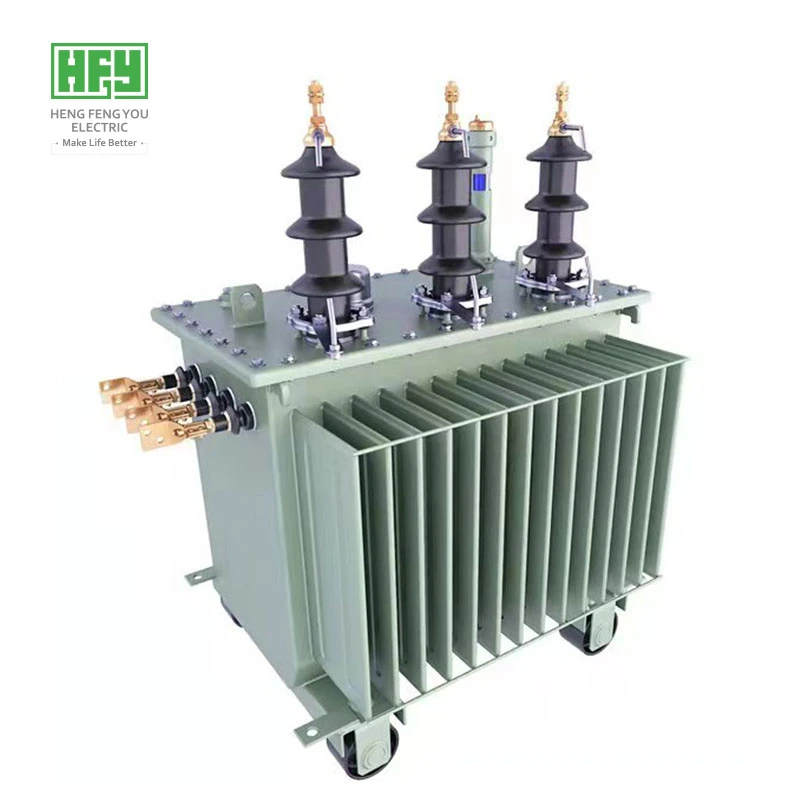

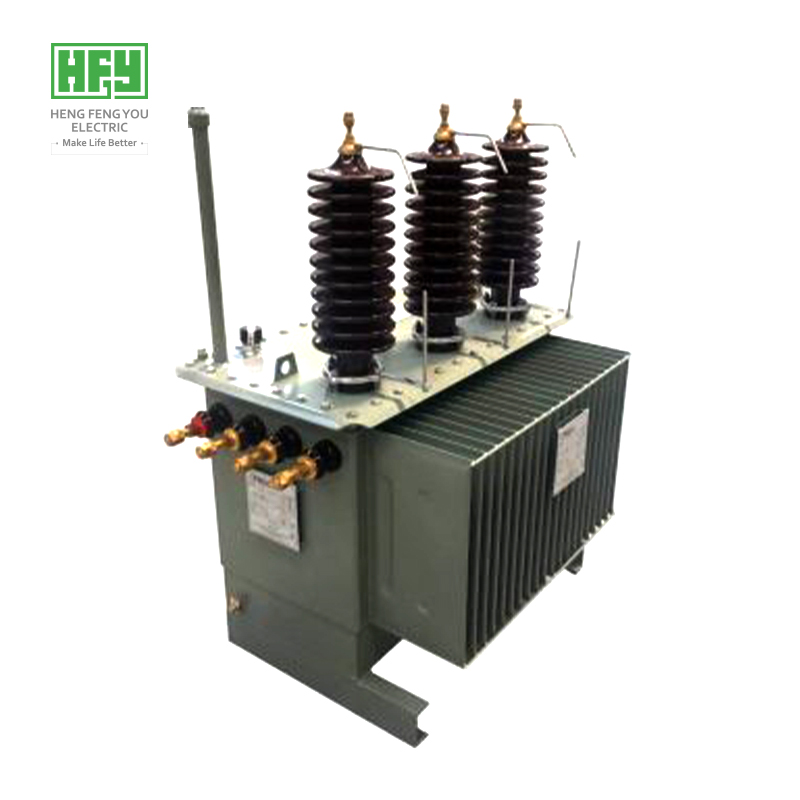

H61 Distribution Transformer

Brand: HENGFENGYOU
Series: H61
USES: Distribution Transformer
Country of origin: China
Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
Certification: ISO9001、CB、CE、KEMA

Get Quotes

H61 Distribution Transformer overview

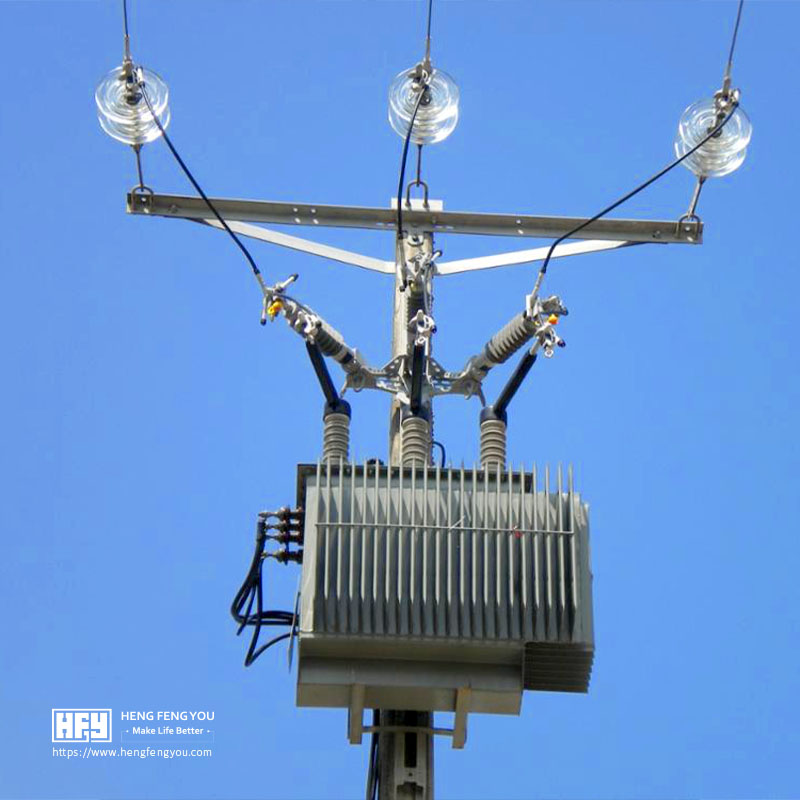

H61 series distribution transformer made by HENGFENGYOU ELECTRIC, is an oil type transformer conforming to IEC 60076 standard, which can meet the needs of different countries. H61 oil immersed transformer is suitable for overhead distribution network in rural and urban surrounding areas. The upper incoming line is adopted for high voltage and the side outgoing line is adopted for low voltage, which is equipped with triangular lightning arrester.

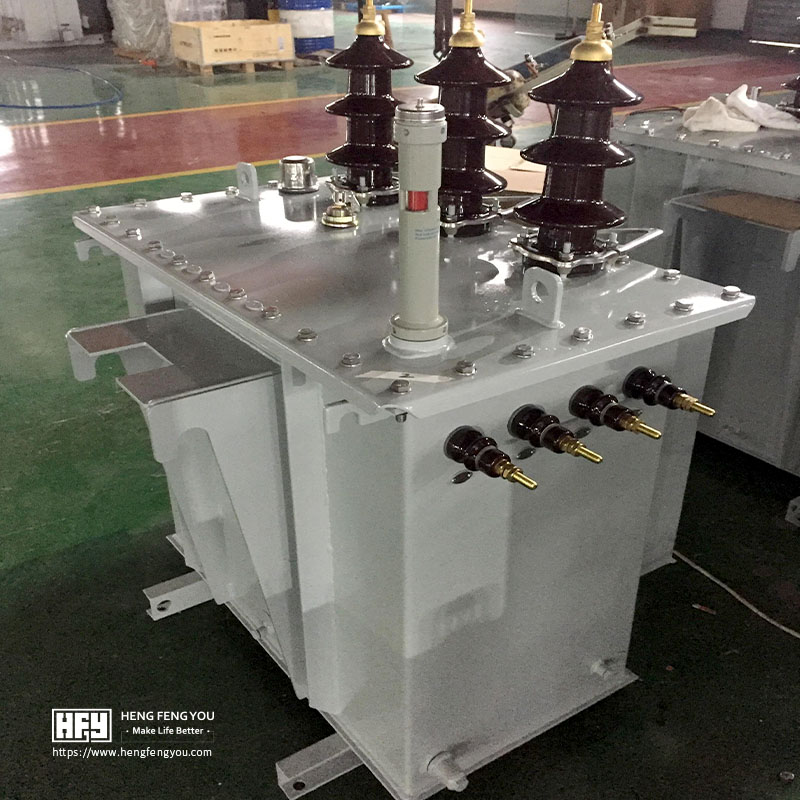

• Composition of H61 distribution transformer:

3 HV ceramic insulator

4 LV ceramic insulators

Triangular lightning arrester

temperature measurement

Pressure relief valve

Oil level gauge

4 lifting lugs

Four pulleys are welded at the bottom of the water tank

2 grounding

Nameplate, warranty

• Standard: IEC 60076 (Publications 1-2-3-4 and 5); D60-p60 onee power sector.

• Rated power: 50kva-100kva-160kva.

• Working voltage: high voltage: 3.3kV to 36kV; Low voltage: 400-430 V

• Other specific voltages can be provided according to customer requirements.

H61 Distribution Transformer FAQ

What is the rated capacity range of the H61 Distribution Transformer?
The H61 Distribution Transformer typically comes in capacities ranging from 50 kVA to 2500 kVA, depending on the model and application.
What are the primary voltage ratings for the H61 transformer?
The primary voltage ratings commonly include 11 kV, 22 kV, and 33 kV, but custom configurations may be available.
Does the H61 transformer comply with international standards?
Yes, the H61 transformer is designed to meet IEC 60076 and other relevant industry standards.
What type of cooling system does the H61 transformer use?
The H61 transformer typically uses ONAN (Oil Natural Air Natural) cooling for efficient heat dissipation.
Can the H61 transformer be used in outdoor installations?
Yes, the H61 transformer is built for outdoor use with weather-resistant construction.
What is the expected lifespan of the H61 Distribution Transformer?
With proper maintenance, the H61 transformer can last 25 to 30 years under normal operating conditions.
Are there options for corrosion-resistant coatings?
Yes, special anti-corrosion treatments can be applied for use in harsh environments.
What safety features are included in the H61 transformer?
Standard safety features include pressure relief devices, temperature monitoring, and fault protection systems.
Can the H61 transformer be customized for specific load requirements?
Yes, manufacturers often provide customization options for voltage ratios, tap changers, and other specifications.
What maintenance is required for the H61 transformer?
Regular maintenance includes oil testing, insulation checks, and visual inspections to ensure optimal performance.
