Mobile Power Substation

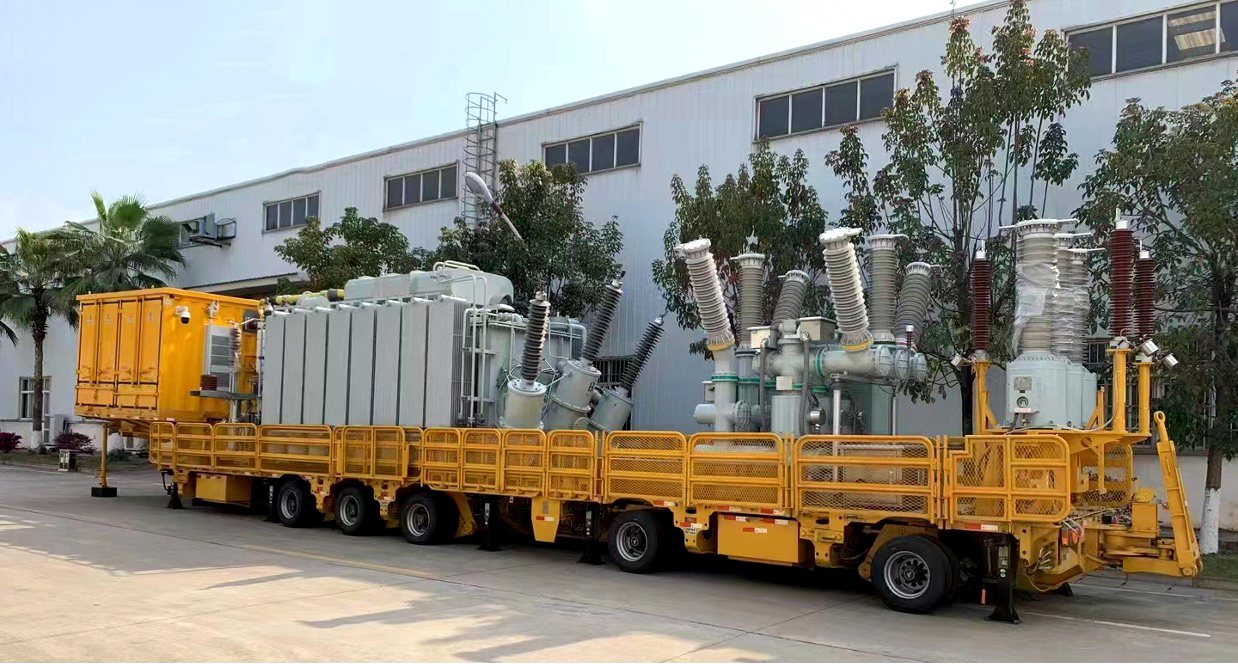

110 kv Vehicle Mounted Mobile Substation

  • Brand: HENGFENGYOU
  • Series: HVMM
  • USES: Mobile Substation
  • Country of origin: China
  • Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
  • Certification: ISO9001、CB、CE

110 kv Vehicle Mounted Mobile Power Substation Global Procurement Guide
【Flexible and efficient power emergency solutions】

110kv Mobile Substation Overview
-The 110KV series vehicle mounted mobile Power substation (110-132kv) produced by Hengfengyou is a combined substation equipment that integrates primary and secondary electrical equipment and a load-bearing chassis. It integrates high and low voltage switchgear, high voltage power transformers, protection, communication, power supply and other devices to achieve the integration of substation and distribution, and to quickly provide reliable power supply. It can be fully customized according to user requirements.

-Due to the strong emergency response capability of vehicle mounted mobile substations, the demand for vehicle mounted mobile substations has been increasing worldwide in recent years, and the power transmission and operation rate of mobile substations has also been increasing year by year. Therefore, the market prospects of mobile substations are very broad.
-The products have been sold to South Africa, Tanzania, Ethiopia, Nigeria, Uzbekistan, Kazakhstan, Iran, the United Arab Emirates, Saudi Arabia, Iraq, Türkiye, Egypt, the United States, Canada, Mexico, Brazil, Ecuador and other markets and regions.
Product application: emergency repair of natural disasters, maintenance, renovation and upgrading of conventional substations, engineering support, temporary power supply, etc.

110 kv mobile substation transformer,110 kv portable power substation,110 kv Mobile Substation

110kv Mobile Substation Advantage
-15 years of independent research and development, production, and sales experience both domestically and internationally.
-110kv mobile substation capacity: 30 units/year below 132kV; 120 units per year below 35kV.
-The 110kv mobile substation has been extensively validated for reliable operation in both domestic and international markets.
-Compact design: using GIS (gas insulated switchgear) to reduce footprint.
Modular structure, easy to disassemble and transport quickly.
-Intelligent monitoring system: equipped with SCADA system, real-time monitoring of parameters such as voltage, current, temperature, etc.
Support remote control to improve operational efficiency.
-High protection level: The enclosure has a protection level of IP54 and is suitable for harsh environments such as high humidity and sandstorms.
Optional shockproof and corrosion-resistant design, suitable for coastal or high-altitude areas.


110kv Mobile Substation Techical Specification
Rated voltage: 110kv
Output voltage: 6.3kV -6.9kV -10.5kV -11.5kV -15.75kV -21kV 33kv 35kv
Rated capacity: 10MVA-63MVA
Personalized customization: can be fully customized according to user requirements.



Rated capacity Voltage Ratio Vector Group Cooling method Short circuit impedance
5000 35/6.3,35/10.5,33/11.5 ,33/6.9 Yd11 ONAN/ONAF 0.065
6300 35/6.3,35/10.5,33/11.5 ,33/6.9 Yd11 ONAN/ONAF 0.065
8000 35/6.3,35/10.5,33/11.5 ,33/6.9 Yd11 ONAN/ONAF 0.065
10000 35/6.3,35/10.5,33/11.5 ,33/6.9 Dy11 ONAN/ONAF 0.065
25000 66/13.8,66/11.5,66/21 Dyn11 ONAN/ONAF 0.075
31500 110/10.5,110/11.5,110/13.8,110/21 YNd11 ONAN/ONAF 0.105
40000 110/10.5,110/11.5,110/13.8,110/21 YNyn0d11 ONAN/ONAF 0.105
50000 110/10.5,110/11.5,110/13.8,110/21 YNd11 ONAN/ONAF/ODAF 0.17
63000 110/10.5,110/11.5,110/13.8,110/21 YNd11 ONAN/ONAF/ODAF 0.17

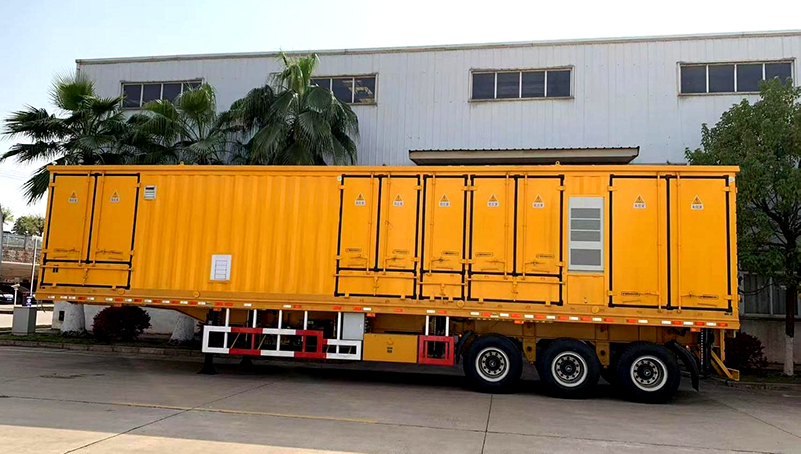

110kv Mobile Substation Case


Grow business with Hengfengyou
Our goal is to become the world's leading manufacturer of electrical equipment. The business, experience and technology accumulated over the years have benefited customers in more than 50 countries around the world. Once our customers establish a cooperative relationship, they are long-term trusted customers, because Hengfengyou always insists on providing you with our best electrical products and services.


110kv Mobile Substation FAQ

Q1.:What is a 110kV vehicle mounted mobile substation?

A mobile substation integrated on trailers or semi trailers, including power transformers, GIS switchgear, protection systems, etc., can be quickly deployed on site to achieve temporary or emergency power supply of 110kV voltage level.


Q2:What are the main application scenarios of 110kV mobile substations?

*Emergency repair of power grid (such as substation paralysis caused by natural disasters);

*Temporary power supply guarantee for large-scale events;

*Transitional power supply during the construction of new energy power stations (such as wind farms);

*Short term electricity demand in mining areas, construction sites, etc.



Q3:What are the advantages of 110kV mobile substations compared to traditional substations?

*Rapid deployment: usually put into operation within 24-72 hours;

*Flexibility: Reusable and transferable at any time;

*Cost saving: Avoid land and construction costs for permanent substations.



Q4:What is the capacity range of the vehicle mounted mobile substation?

The common capacity is 10MVA~63MVA, customized according to specific needs.



Q5:How to transport 110kV mobile substations? Do you need special permission?

*Towed by heavy trucks, it must comply with road transport size/weight restrictions;

*When exceeding the limit, a special transportation permit is required, and some countries require traffic police escort.



Q6:Does a 110kV mobile substation require infrastructure construction?

Only simple site leveling and cable trench excavation are required, without the need for permanent buildings, but the bearing capacity of the foundation needs to be ensured.



Q7:What is the protection level of a 110kV mobile substation? Can it operate in harsh environments?

*The box is usually IP54 or above (dustproof, splash proof);

*Optional temperature control system (-45 ℃~+55 ℃), moisture-proof, salt spray resistant, etc.



Q8:What are the daily maintenance contents of 110kV mobile substations?

*Regularly check the oil level and insulation performance of transformers;

*Clean the radiator and test the protective device;

*Secure the mechanical connection components before and after movement.



Q9:What are the lifespan and retirement standards for 110kV mobile substations?

*The design lifespan is about 20 years, depending on the frequency of use and environment;

*The retirement standards refer to conventional substations (such as insulation aging and non compliant performance).



Q10:. Can 110kV mobile substations be compatible with renewable energy access?

Yes, it can be configured with photovoltaic/wind power interfaces, supporting reactive power compensation and power quality management functions.



Q11:Is the grid connection process complicated?

It needs to meet the requirements of the local power grid, including coordination of protection settings, harmonic testing, etc., usually completed by a professional team.



Q12:Which is more cost-effective for renting or purchasing a 110kV mobile substation?

*Short term demand (<1 year): It is recommended to lease to reduce financial pressure;

*Long term or high-frequency use: Purchasing is more economical, but maintenance and storage costs need to be considered.
