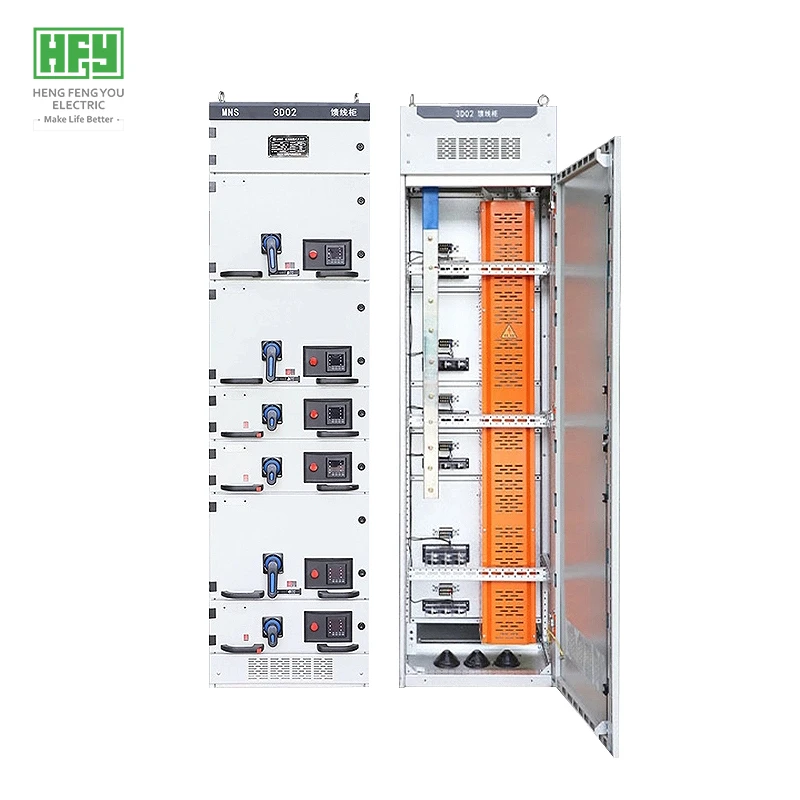

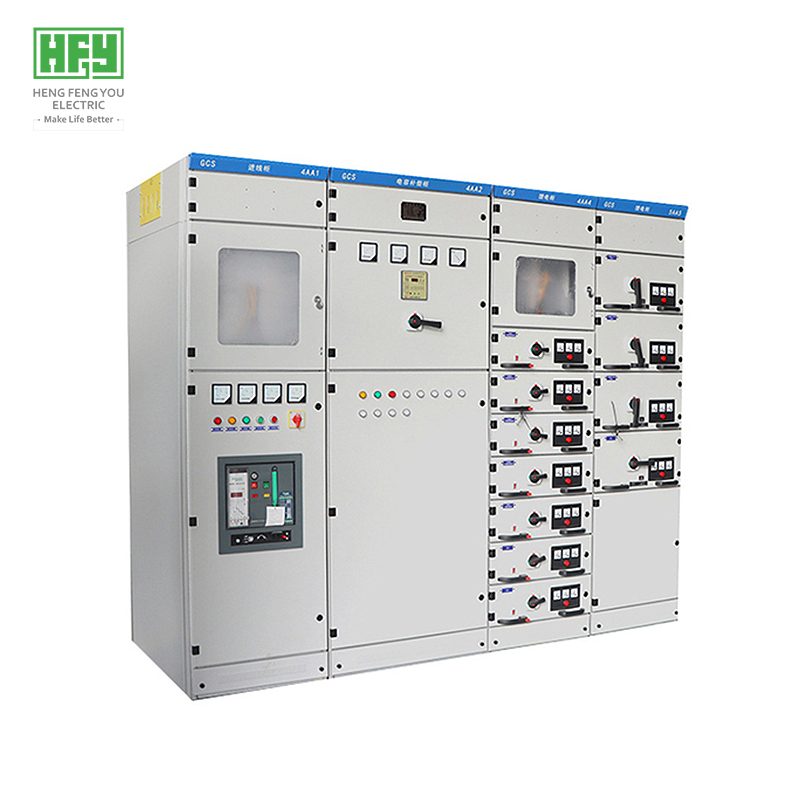

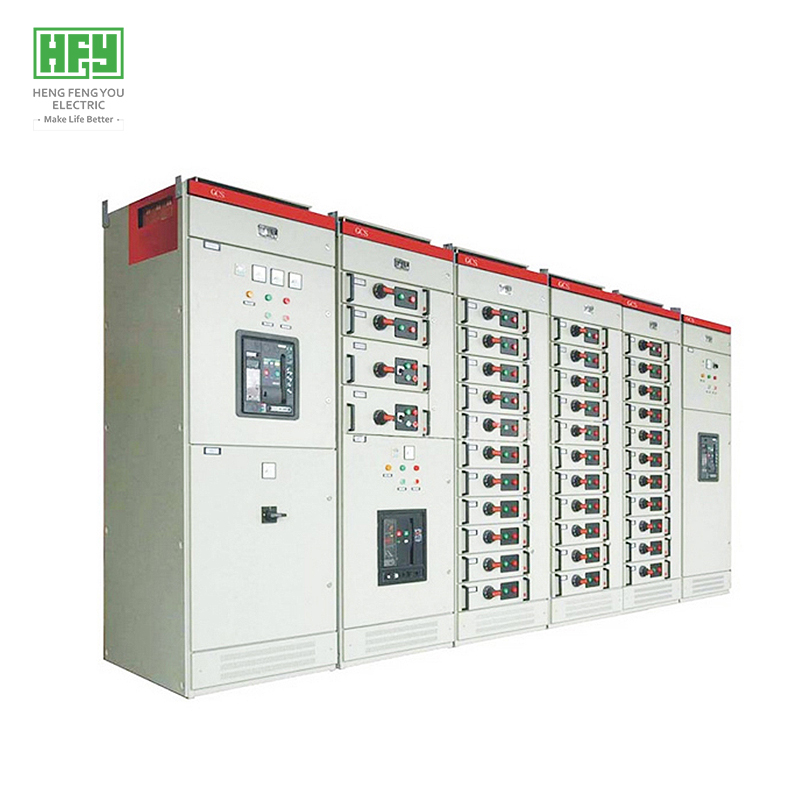

Product overview
- It is mainly used for power distribution, motor centralized control and reactive power compensation in power generation and power supply systems
- Rated AC frequency 50Hz/ 60Hz, maximum working voltage to 660V, maximum working current to 4000A
- High reliability of operation verification in more than 50 countries and regions around the world
- Mainly used in power plant, petrochemical, metallurgy and other high degree of automation, the need to interface with computer and other power distribution places
- Meet many international standards: IEC60439, BS5486, VDE0660, GB7251, NEMAIC2-322, JB/T9661, etc
Product advantage
> Leading technology
- Standard anti-corrosion and salt spray environmental plan to meet the stringent environmental requirements of the site
- High breaking capacity, good dynamic and thermal stability, advanced structure, any combination of various scheme units
- A single cabinet contains more circuits, high level of security protection (IP30), easy maintenance
> Cabinet put oneself in another's position
- The overall use of 8MF type open section steel, the two sides of the section steel have module 20mm, 100mm and 9.2mm installation holes respectively
There are two types of assembly, full assembly structure and part (side frame and beam) welded structure
- The compartment is divided into functional unit room, bus room and cable room. The function of each room is relatively independent for live maintenance
- Laser numerical control equipment cutting, drilling, bending, to ensure the processing accuracy
- The exterior is coated with electrostatic epoxy powder, which will not take off paint for 50 years
- Molding size, hole size and equipment interval are modularized (modularized E=160mm)
> Functional unit (drawer part)
- The drawer layer height module is 160mm (divided into 1/2 unit,1 unit,3/2 unit,2 unit,3 unit). Maximum rated current of unit loop is 400A
- The drawer changes only in height size, its width, depth size unchanged, the same functional unit of the drawer has a good interchangeability.
- Each MCC cabinet can be equipped with 11 one-unit drawers or 22 1/2 unit drawers, of which more than one unit drawer is equipped with multifunctional back board
- According to the current size of the drawer in and out of the line with different number of pieces of the same specification chip structure plug-in.
- The drawer unit is equipped with mechanical interlocking device. When the main switch is closed, the door panel cannot be opened
- The drawer unit has a sufficient number of secondary connectors to meet the requirements of the number of connections of computer interfaces and automatic control circuits
> Busbar system
- Adopt three-phase four-wire system or three-phase five-wire system
- High quality three-phase tin bus copper bar, high mechanical strength, good heat dissipation
- The flat bus arrangement makes the device have good dynamic and thermal stability, and can withstand 80/176kA short circuit current impact
> Processing and assembly
- Dust-free workshop to ensure insulation
- Assembly workers have been trained for at least 6 months
- The secondary connection is automatic terminal crimping machine to ensure reliable connection
- Use power tools to ensure proper torque for bolting reinforcement
- The copper bus is CNC cutting, punching and bending to ensure the accuracy
- All kinds of experimental tests before delivery to ensure the normal operation of the equipment
Product parameters
|
Rated voltage of auxiliary circuit (V)
|
|
|
AC220、380(400)DC110、220
|
FN12-10
|
FZN25-12
|
|
Rated frequency (Hertz)
|
|
|
50(60)
|
12
|
|
Rated insulation voltage (V)
|
|
|
660(1000)
|
|
Rated current (A)
|
|
The horizontally
|
W4000
|
|
|
Vertical busbar (MCC)
|
1000
|
50
|
|
Short-time permissible current of bus (kA/1 s)
|
|
50, 80
|
630
|
|
Rated peak allowable current of bus (kA/ 0.1s)
|
105, 176
|
630
|
|
Power frequency test voltage (V/1min)
|
|
The main circuit
|
2500
|
Not less than 100
|
|
|
Auxiliary circuit
|
1760
|
1250
|
|
bus
|
|
Three phase four wire system
|
A. B、C、PEN
|
20/4;
|
|
|
Three phase five wire system
|
A. B、C、PE、N
|
Ground switch 20/2
|
|
Protection level
|
|
|
IP30、 IP40
|
50
|
|
11
|
|
Rated short circuit current (peak)
|
50
|
|
12
|
In combination with
|
Fuse current rating
|
A
|
100
|
|
13
|
Electrical appliances
|
Rated transmission current
|
1500
|
2000
|
|
14
|
|
Rated short circuit breaking current
|
kA
|
31.5
|
|
15
|
|
Equipped with fuse model
|
|
SQLAJ-12(XRNTa-10)
|
|
16
|
Mechanical life
|
次
|
2000
|
10000
|
|
17
|
The auxiliary circuit withstands 1min power frequency voltage
|
kV
|
2
|
|
18
|
Operating voltage of electric operating mechanism
|
V
|
Ac/dc 220;110
|
|
19
|
Protection level
|
|
IP2X
|
|
20
|
Dimensions (W × D × H)
|
mm
|
650(850)x900x2000(2200)
|
Conditions of use
- Altitude shall not exceed 2000m
- ambient air temperature not higher than +40 ° C, not lower than -5 ° C (average temperature within 24 hours not higher than +35 ° C)
- The humidity of the surrounding air should not exceed 50%. Low temperature allows a large relative temperature (e.g. +20 ° C is 90%). Consideration should be given to the effect of condensation caused by temperature changes
- Inclination with vertical plane is not more than 5°, and the whole group of cabinets is relatively flat, in line with (GBJ232-2) standard
- Requested in no violent vibration and impact, electrical components will not be corroded, no conductive dust place
Ordering instructions
> The customer shall provide the following information:
- Main circuit scheme diagram, secondary circuit system diagram and auxiliary circuit control mode
- Equipment layout drawing and distribution room layout drawing
- Brand and model of main electrical components of the equipment
- Inlet and outlet line mode. When bus bridge connection is needed between devices, data such as bus spacing and height from ground shall be provided.
- Other special requirements can be negotiated with Hengfengyou Electric
Our Advantages
-
Authoritative product certification: ISO CE, CB, CCC, etc
- Perfect SQA quality management system to ensure high quality products
- Quick quotation, can provide electrical design services
- The delivery period is short, and the fastest delivery time is 15 days worldwide
- Perfect after-sales service system, so that customers buy worry-free
- Welcome customers to visit the factory guidance, provide OEM/ODM protection level
