Isolation Transformer

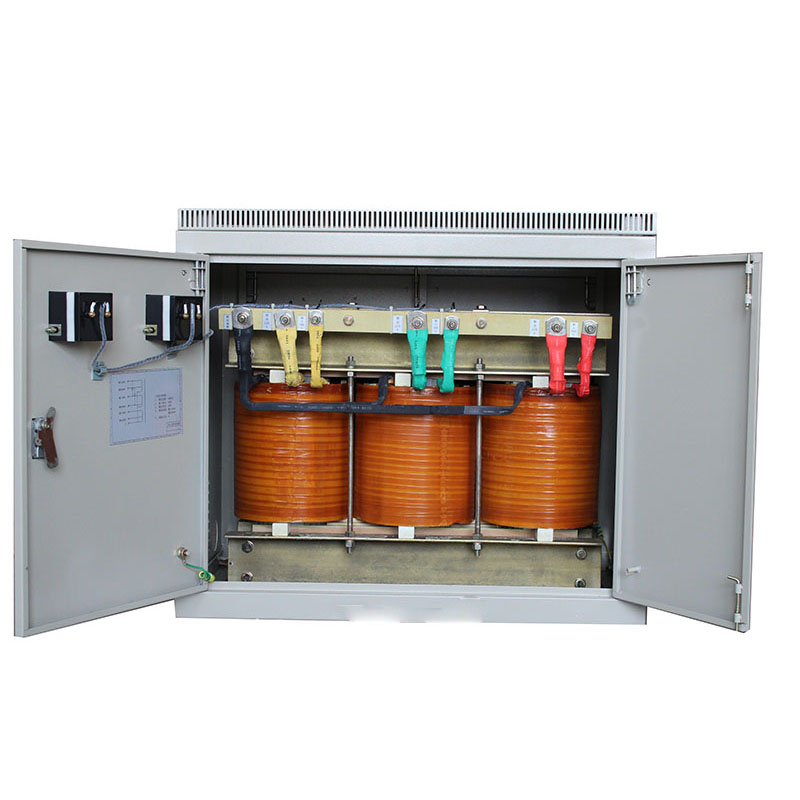

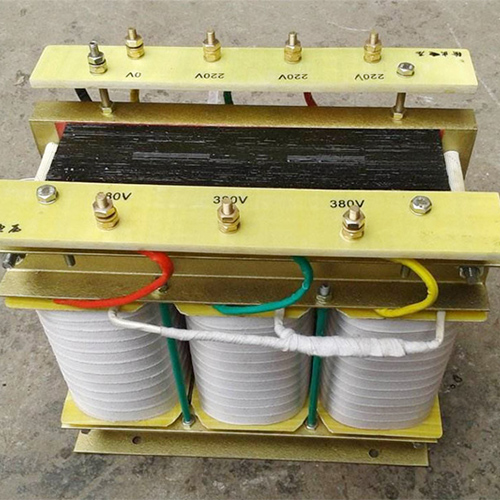

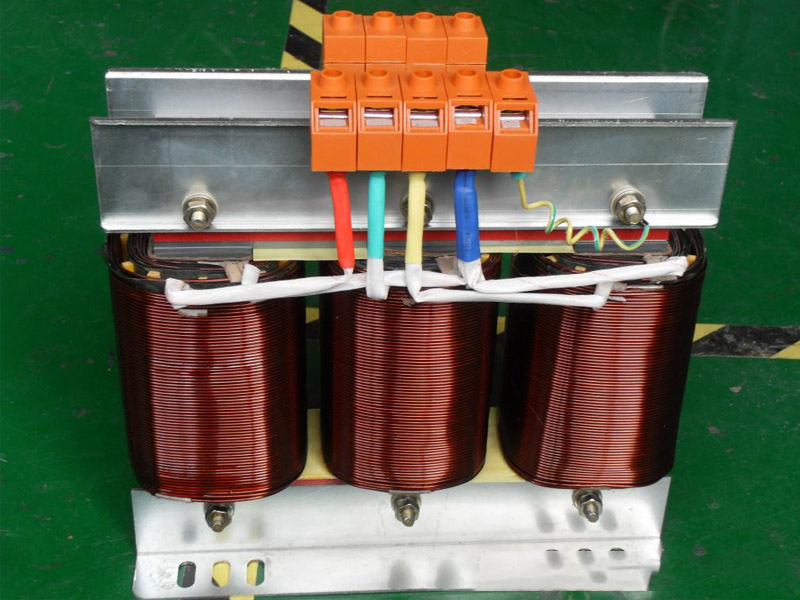

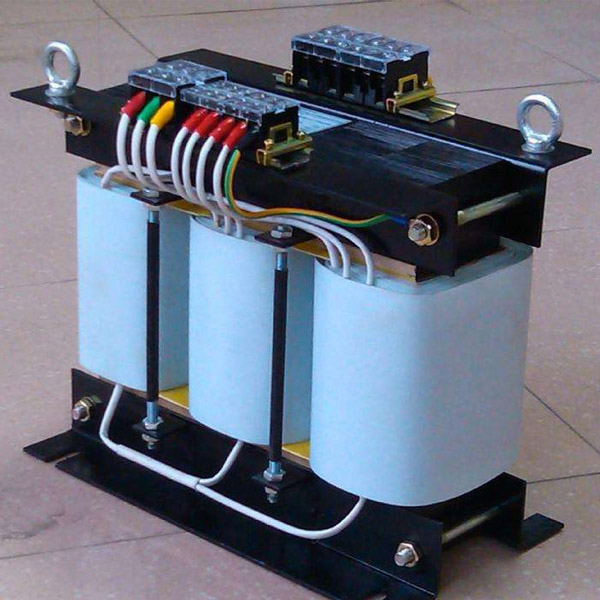

Three Phase Dry Type Isolating Transformer

  • Brand: HENGFENGYOU
  • Series: DG
  • USES: High and low voltage complete sets of electrical, precision machine tools, UPS, electroplating, lighting, heating, communication, chemical industry and other equipment control power, power
  • Country of origin: China
  • Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
  • Certification: ISO9001、CB、CE、KEMA

Three Phase Dry Type Isolating Transformer overview

 -Dry isolation transformer is produced by Hengfengyou Electric using high quality materials and advanced technology. It has the advantages of moistureproof and convenient maintenance. It is mainly used in various power supply places with AC 50/60Hz and voltage not exceeding 660V
 - Actual measurement is better than GB and IEC standards, CB CCC KEMA certification
 - High reliability of operation verification in more than 50 countries and regions around the world.
Mainly used in various high and low voltage complete sets of electrical, precision machine tools, UPS, electroplating, lighting, heating, communication, chemical industry and other equipment control power, power supply
 - Products are mainly sold to Central Asia, Southeast Asia, the Middle East, Africa, South America and other markets and regions

Three Phase Dry Type Isolating Transformer

Three Phase Dry Type Isolating Transformer advantage

Leading technology
- Copper foil winding technology, high quality A class insulation material insulation
Small magnetic leakage, high mechanical strength, strong resistance to short circuit
Core 45° fully oblique joint stepping laminated structure

The iron core
The iron core is made of high quality cold-rolled grain oriented silicon steel sheet with mineral oxide insulation (from Baosteel and WISCO of China).
By controlling the cutting and stacking process of silicon steel sheet, the loss level, no-load current and noise can be minimized
The iron core is specially reinforced to ensure the structure of the transformer is firm during normal operation and transportation

> Winding
Made of high quality copper foil (can be customized aluminum foil), excellent insulation resistance

High quality material
Baosteel and WISCO produce silicon steel sheets
China's high quality oxygen free copper

Patent technology
The electrical performance of the transformer has reached the Chinese national standard GB and IEC standards, with high efficiency and low loss characteristics


Conditions of use
 - Altitude less than 5000m, air temperature -15℃~45℃, humidity less than 90% (+25℃)
 - The vertical incline shall not exceed 5°, there shall be no severe vibration, and the outdoor wind speed shall not exceed 35m/s
 - No gas or conductive dust that seriously affects the transformer insulation;
No explosion hazard, no corrosion of electrical components
 - If the above normal operating conditions are exceeded, customers can contact our company for customized solutions


Three Phase Dry Type Isolating Transformer parameters

  - Isolation transformer voltage grade:
1140V, 690V, 660, 600V, 480V, 460V,
415V, 440V, 400V, 380V, 360V, 315V, 220V, 208V, 200V, 127V, 110V, 100V, 48V, 36V, 24V, 12V, 6.3V and so on
  - All kinds of input and output voltage, connection group and tap line group capacity allocation can be carefully designed and manufactured according to user requirements.

Model Input voltageV  output voltageV  Product size without shell (CM) / weight (kg)  Product size with shell (CM) / weight (kg)
SG-5 KVA 660V 380V 30×15×25/35 45×25×30/56
SG-6KVA 400V 220V 30×16×25/40 45×25×30/64
SG-7KVA 380V 110V 35×15×30/45 50×25×35/80
SG-8KVA 200V 36V 35×16×30/55 50×25×35/80
SG-10KVA     42×21×42/90 60×32×65/130
SG-15KVA     52×24×52/135 70×35×77/185
SG-20KVA     52×24×52/180 70×35×77/220
SG-30KVA     55×28×65/220 80×40×87/260
SG-40KVA     61×30×65/265 90×50×95/320
SG-50KVA     61×30×65/295 90×50×95/360
SG-60KVA     70×32×66/370 100×50×105/440
SG-80KVA     70×32×67/450 100×50×105/530
SG-100KVA     75×35×68/490 100×50×105/570
SG-120KVA     75×35×68 100×50×105/600
SG-150KVA     85×37×68 120×65×115/690
SG-180KVA     95×45×83 120×65×115/930
SG-200KVA     95×45×83 120×65×115/1010
SG-250KVA     95×45×83 120×65×115/1180
SG-300KVA     105×45×95 120×70×125/1450
SG-320KVA     105×45×95 130×50×135/1490
SG-350KVA     105×45×95 130×50×135/1600
SG-400KVA     115×55×105 140×60×145/1700

Ordering instructions

 - Main parameters of transformer
 - Transformer use environment
 - Other customization requirements
 - Minimum order quantity: 1 set, global delivery within 7 days
 - The normal delivery period is 30 days, fast delivery worldwide


Our Advantages

 - Authoritative certification: ISO, CE, CB, CCC, SASO, KEMA, etc
 - Perfect SQA quality management system and patented technology to ensure high quality products
 - Efficient production equipment and low raw material prices ensure the price advantage
 - Adequate inventory, short lead time, fast delivery worldwide
 - Perfect after-sales service system, so that customers buy worry-free
 - Welcome customers to visit our factory and provide OEM/ODM service

Three Phase Dry Type Isolating Transformer FAQ
  1. What is a three-phase dry-type isolating transformer?
    It is a transformer that electrically isolates the primary and secondary circuits without using liquid cooling, making it safer and maintenance-free.

  2. What are the key applications of these transformers?
    They are commonly used in industrial plants, data centers, hospitals, and commercial buildings where electrical isolation and safety are critical.

  3. How does a dry-type isolating transformer differ from an oil-filled transformer?
    Dry-type transformers use air or solid insulation, eliminating the risk of oil leaks and reducing fire hazards, unlike oil-filled transformers.

  4. What are the efficiency ratings for these transformers?
    They typically meet or exceed industry standards such as DOE 2016 or IEC 60076, with efficiencies ranging from 95% to 98% depending on the design.

  5. Can these transformers handle high inrush currents?
    Yes, they are designed to withstand high inrush currents, making them suitable for applications with frequent motor starts or heavy loads.

  6. What are the standard voltage ratings available?
    Common voltage ratings include 480V to 208V, 600V to 240V, and custom configurations based on specific requirements.

  7. Are these transformers suitable for outdoor installation?
    While primarily designed for indoor use, some models come with weatherproof enclosures (NEMA 3R or higher) for outdoor applications.

  8. What maintenance is required for a dry-type isolating transformer?
    Minimal maintenance is needed—periodic inspection for dust accumulation, loose connections, and thermal checks ensure long-term reliability.

  9. Do these transformers provide noise reduction?
    Advanced designs include low-noise features, but noise levels depend on the load and cooling method (natural or forced air).

  10. What safety certifications should I look for?
    Ensure compliance with UL 5085, CSA C22.2, or IEC standards to guarantee safety and performance reliability.
