Amorphous Alloy Transformer

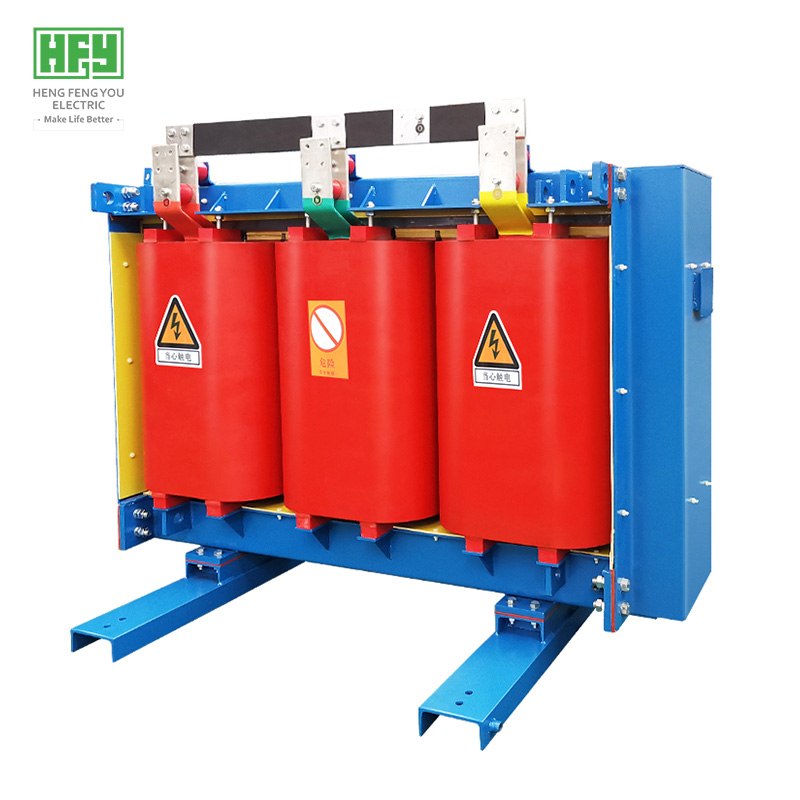

33KV Three Phase Amorphous Alloy Dry Type Distribution Transformer

Brand: HENGFENGYOU
Series: SCBH15
USES: Distribution transformer
Country of origin: China
Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
Certification: ISO9001、CB、CE、KEMA

Get Quotes

Product overview

- Lower loss, energy saving and environmental protection, 70-80% energy saving than SCB9 series
- Actual measurement is better than GB and IEC standards, CB KEMA SASO certification
- Safer excellent fire performance F1 class
- With perfect temperature protection and control system, it can run at 150% rated load under forced air cooling conditions
- The high reliability verified by global operation has been exported to more than 50 countries and regions
- It is mainly used in 33KV urban distribution network, power supply and distribution system of industrial and mining enterprises and civil buildings
- Products are mainly sold to Southeast Asia, the Middle East, Africa, South America and other countries and regions
- Executive standard: GB1094.11-2007, GB/T22072-2008 and IEC60076-11 standards;The product is H class (working temperature 180℃) heat resistant grade
- The shell materials are aluminum alloy, cold rolled steel plate, stainless steel, etc. (protection level IP20, IP23, etc.)

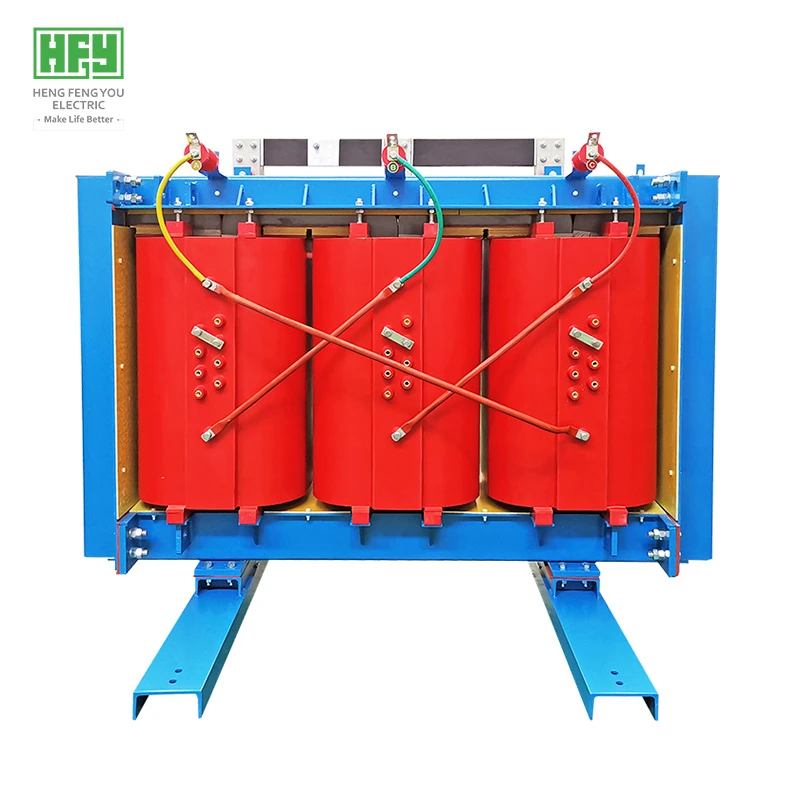

33KV Three Phase Amorphous Alloy Dry Type Distribution Transformer

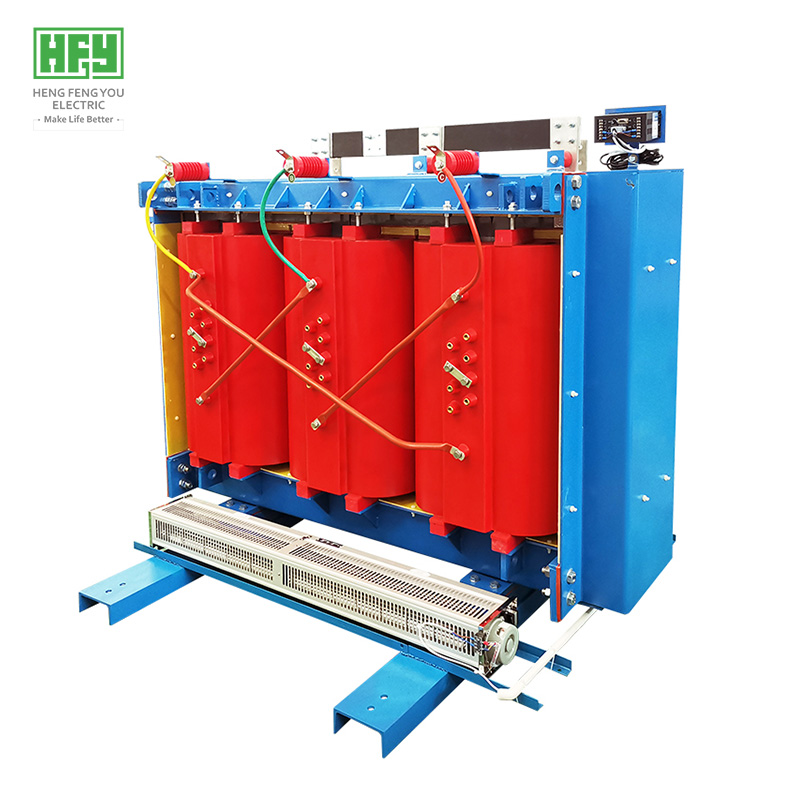

33KV Three Phase Amorphous Alloy Dry Type Distribution Transformer

Product advantage

> Leading technology
- High pressure copper strip winding technology, flame retardant formula vacuum pouring
- Low pressure copper foil winding technology, thermosetting epoxy prepreg cloth insulation
- Three - phase five - column structure, iron core around the use of frame structure protection
- With strong heat dissipation and low temperature rise, it can run at 150% rated load under air-cooled conditions

> The iron core
- The core is made of high quality amorphous alloy silicon steel sheet
- Very low loss (75% lower than GB/T10228 standard) can be achieved by controlling the cutting and stacking process of silicon steel sheet.
- The surface of the core is sealed with grade F or grade H core paint to prevent dust and corrosion

> Low voltage winding
- The low voltage winding is made of high quality copper foil
- The insulation between layers is made of thermosetting epoxy prepreg cloth
- The ends of the windings are insulated with thermosetting epoxy prepreg cloth
- Excellent insulation resistance
- It has very good ability to bear radial stress caused by short circuit
- The outlet terminal of low voltage winding is tin-plated copper bar

> High voltage winding
- Woven with insulated copper wire, and applied by hengfengyou electric exclusive patent technology
- The application of these methods causes the electric field between adjacent conductors to be very low
- The transformer has a firm structure during normal operation and transportation

> High quality material
- China WISCO silicon steel sheet
- China produces high quality oxygen free copper
- Swiss Huntsman epoxy resin (with flame retardant filler)

> Patent technology
- The high pressure coil is cast under high vacuum, and the casting material system is added with a unique flame retardant filler, which is a patented technology of Hengfengyou Electric.When the transformer is exposed to the flame, the transformer will die out immediately.With a unique and excellent flame retardant characteristics and the ability to adapt to harsh working environment.

Conditions of use

- Altitude less than 1000m, air temperature -25℃~40℃, humidity less than 90% (+25℃)
- The vertical incline should not exceed 5°, there is no severe vibration place, and the outdoor wind speed should not exceed 35m/s
- No gas or conductive dust that seriously affects the insulation of the transformer;No explosion hazard, no corrosion of electrical components
- If the above normal operating environment conditions are exceeded, customers can customize the solution with our company separately

Product specifications

- Input voltage: 33kV
- Output voltage: 0.4kV
- Capacity: 30-2500 kva
- Remark: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements

Ordering instructions

- Main parameters of transformer (voltage, capacity, loss and other main parameters)
- Transformer use environment (altitude, temperature, humidity, place, etc.)
- Other customized requirements (tap switch, color, oil pillow, etc.)
- The MOQ is 1 set, and the goods will be delivered within 7 days
- The normal delivery period is 30 days, with fast delivery worldwide

Our advantages

- Authoritative certification: ISO, ANSI, CB, etc
- Perfect SQA quality management system and patented technology to ensure high quality products
- Efficient production equipment and low raw material prices to ensure the price advantage
- Sufficient inventory, short delivery time and fast delivery worldwide
- Perfect after-sales service system, allowing customers to buy worry-free
- Provide OEM/ODM services. Welcome clients to visit our factory
