Number and model of Distribution Box
Writer： Hengfeng you electric Time：2023-04-07 views：times
Qingdao hengfengyou electric, subordinate to hengfengshuai group, is a professional electrical company focusing on the production, manufacturing and sales of electrical distribution products. It has been successfully sold to more than 50 countries around the world. Today, let Xiaobian show you the number and model of common distribution boxes:

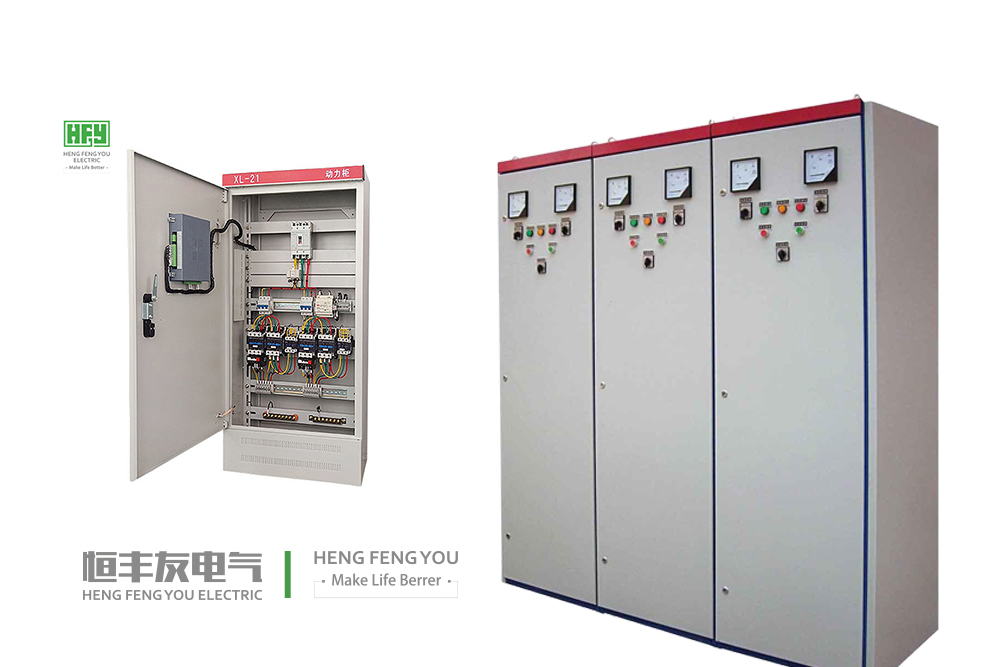

Small distribution boxes are generally divided into compact distribution boxes, such as pz30 or golf. They are commonly used for concealed installation in Residential Suites or corridor walls. They are often composed of miniature circuit breakers. The incoming line is 3-phase MCB below 63A, and the outgoing line is 3-phase or single-phase MCB or RCB. They are generally embedded in the wall, and the bottom distance from the ground shall not be less than 1.5m according to the specification requirements. The surface mounted distribution box is often used as the floor general distribution box, and the lower level is the above compact distribution box. The general distribution box is often set in the strong current shaft. The surface mounted, the main switch is the high current molded case circuit breaker MCCB, the outgoing line is MCCB or MCB (medium current, three-phase majority), the incoming line is generally cable, and the outgoing line is the conductor to the concealed distribution box at the lower level, and the model is generally XM The cabinet type distribution box is generally floor mounted and used as the main incoming line. The general model of electric box has little meaning. It mainly depends on the switch.
Distribution box model and number
GCK, GCS and MNS are low-voltage draw out switchgear;
GGD, GDH and PGL are low-voltage fixed switchgear;
Xzw integrated distribution box; Zbw box type substation;
40. GXL low voltage distribution cabinet and construction site box;
JXF electrical control box;
Pz20 and pz30 series terminal lighting distribution box;
Pz40, XDD (R) meter metering box pxt (R) k - □ / □ - □ / □ - □ / □ - □ / □ / IP □ series specification and model explanation:
(1) Pxt surface mounted distribution box, concealed mounted plus (R)
(2) K is like the series wiring mode in Table 1
(3) □ / □ rated current / rated short-time withstand current capacity: expressed in numbers, 250 / 10: rated current 250A / rated short-time withstand current capacity 10kA, which can be reduced according to customer requirements.
(4) □ / □ incoming line type: □ / 1 single-phase input; □ / 3 three-phase input; 1 / 3 indicates mixed input
(5)□ × □ outgoing circuit: single phase circuit × Three phase circuit, 6 × 3 single-phase 6-circuit, three-phase 3-circuit
(6) □ / □ main switch type / protection grade; 1 / IP30 single phase main switch / IP30; 3 / IP30 three-phase main switch / IP30
Schedule 1:
Serial number Chinese Pinyin prefix Chinese interpretation assembly drawing No. electrical schematic drawing No
1 JL metering box pxt01 pxt01 DQ series
2 CZ socket box pxt02 pxt02 DQ series
3 ZM lighting box pxt03 pxt03 DQ series
4 DL power box pxt04 pxt04 DQ series
5 JC metering socket box pxt05 pxt05 DQ series
6 JZ metering lighting box pxt06 pxt06 DQ series
7 JD metering power box pxt07 pxt07 DQ series
8 ZC lighting socket box pxt08 pxt08 DQ series
9 DC power socket box pxt09 pxt09 DQ series
10 DZ power lighting box pxt10 pxt10 DQ series
11 HH mixed function box pxt11 DQ series
12 Zn smart box pxt12 pxt12 DQ series
Name, number, specification and model of electrical cabinet
High voltage switchgear ah
High voltage metering cabinet am
High voltage distribution cabinet AA
High voltage capacitor cabinet AJ
Low voltage power distribution cabinet AP
Low voltage lighting distribution cabinet al
Emergency power distribution cabinet ape
Emergency lighting distribution cabinet ale
Low voltage load switch cabinet AF
Low voltage capacitor compensation cabinet acc or ACP
DC distribution cabinet ad
Operation signal cabinet as
Control panel cabinet AC
Relay protection cabinet ar
Metering cabinet aw
Excitation cabinet AE
Low voltage leakage circuit breaker cabinet arc
Dual power automatic switching cabinet at
Multiple power distribution cabinet am
Knife switch cabinet AK
Power socket box ax
Building automation controller box ABC
Fire alarm controller box AFC
Equipment monitor box ABC
Household distribution box add
Signal amplifier tank ATF
Distributor box AVP
Terminal box AXT
Give an example
GCK the first g represents the distribution cabinet, the second C represents the drawer type, and the third K represents the control
GGD the first g represents the distribution cabinet, the second g represents the fixed type, and the third D represents the power
What does distribution box 1la1a 1al1b at-dt mean, and 1ap2 2ap1 3apc 7ap 1kx and so on.
This is the common code of each distribution board in the engineering distribution system diagram, which is arranged by the designer without mandatory specifications. However, following certain rules, Al is the distribution box, AP is the power distribution box, KX is the control box, etc. For example: 1al1b - type B distribution box representing one location on the first floor; At-dt - elevator distribution box; 1ap2 - represents the power distribution box at the second position on the first floor.
