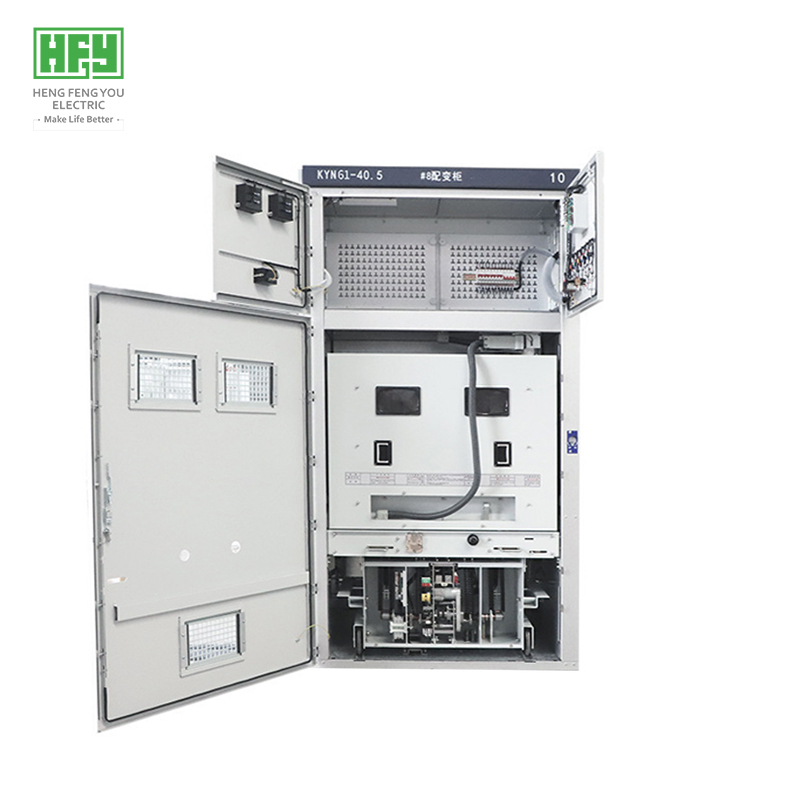

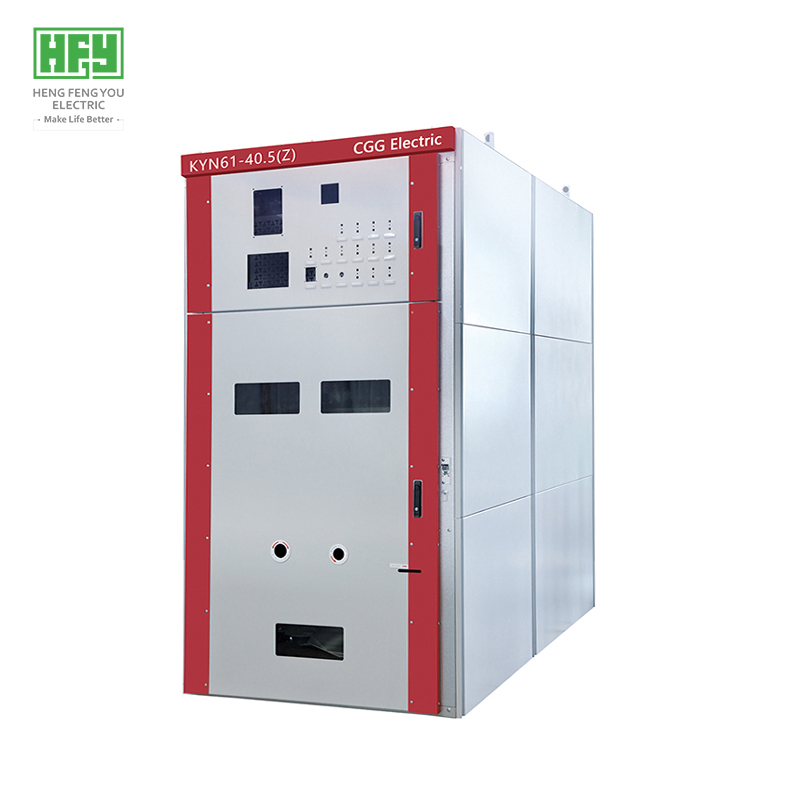

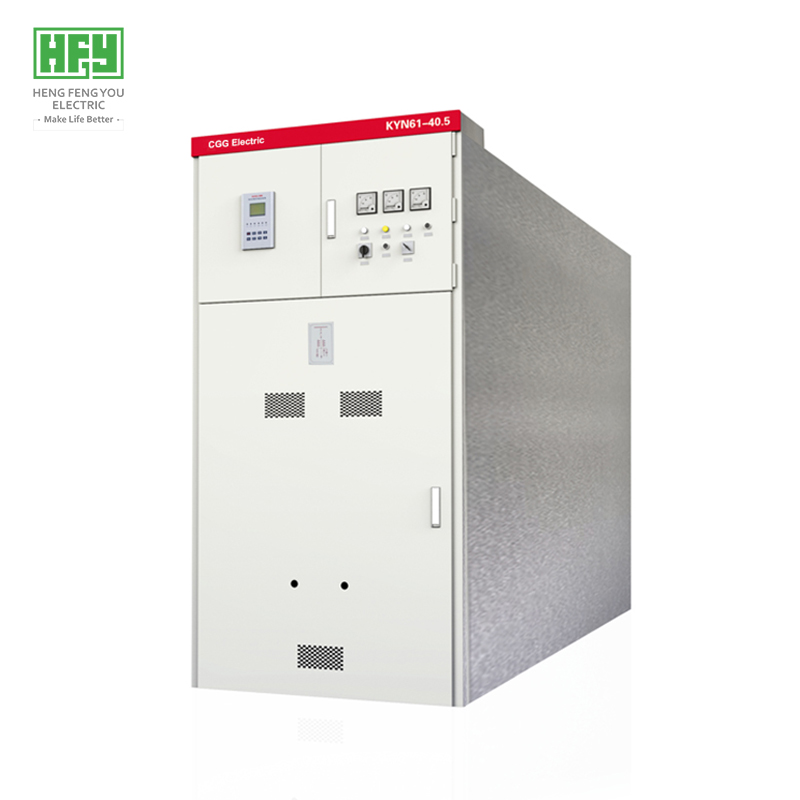

KYN61-40.5 Metal Enclosed Medium Voltage Switchgear

Brand: HENGFENGYOU
Series: KYN61-40.5
USES: High safety, high reliability and leading high voltage power distribution solutions
Country of origin: China
Terms of payment: L/C, T/T, Western Union, Paypal, Money Gram
Certification: ISO9001、CB、CE、KEMA

Get Quotes

Product overview

- KYN61-40.5 Metal Enclosed Medium Voltage Switchgear is suitable for receiving and distributing electric energy, and for controlling, monitoring and protecting the circuit
- Rated AC frequency 50Hz/ 60Hz, maximum working voltage to 40.5KV, maximum working current to 4000A
- More than 50 countries and regions around the world run verification of high reliability
- Mainly used in 15KV 20KV 22KV 30KV 33KV 35KV distribution network, power plants, power systems and industrial and mining enterprises substations received electricity, distribution, can also be used for frequent start of high-voltage motors, etc
- Meet many international standards: IEC60298, IEC6094, GB3906, DL404, DIN.VDE670, etc

33kv switchgear, Medium Voltage Switchgear,Metal Enclosed Medium Voltage Switchgear

33kv switchgear, Medium Voltage Switchgear,Metal Enclosed Medium Voltage Switchgear

Product advantage

> Leading technology
- Standard anti-corrosion and salt spray environmental plan to meet the stringent environmental requirements of the site
- Strong versatility, can be configured domestic and foreign brands of circuit breakers, domestic VS1 series, Schneider HVX series, ABB VD4 series and so on
- It has the functions of "five prevention" (IP2X IP3X) to prevent the misoperation of the circuit breaker, the push-pull trolley with load, the grounding switch from being switched off on line, the power transmission of the grounding switch at the grounding position and the charging interval from being entered by mistake.

> Cabinet put oneself in another's position
- The whole is made of 3mm hot dip galvanized sheet, which is assembled by multiple bending
- The cabinet structure adopts the assembled type, the circuit breaker adopts the handcart floor type structure
- Laser numerical control equipment cutting, drilling, bending, to ensure the processing accuracy
- The exterior is coated with electrostatic epoxy powder, which will not take off paint for 50 years

> Functional units
- Various types of microcomputer integrated relay protection devices can be installed on the panel of relay chamber of this product
- Through CAN bus control with communication interface, intelligent control of the system CAN be realized (remote control, telemetry, remote signaling and remote tuning functions).
- The cabinet body is divided into four separate compartments, and the protection class of the outer shell is IP3X. When the door of each compartment and circuit breaker chamber is opened, the protection class is IP2X
- Heaters can be installed according to user's requirements to prevent condensation and corrosion
- All operations are carried out under the closed state of the cabinet door, which can prevent the intrusion of debris and pests

> Busbar system
- High quality three-phase tin bus copper bar, high mechanical strength, good heat dissipation

> Processing and assembly
- Dust-free workshop to ensure insulation
- Assembly workers should be on duty with at least 6 months training
- The secondary connection is automatic terminal crimping machine to ensure reliable connection
- The bolts are reinforced with power tools to ensure proper torque
- The copper bus is CNC cutting, punching and bending to ensure the accuracy
- All kinds of experimental tests before leaving the factory to ensure the normal operation of the equipment

Product parameters

project		unit	parameter
The rated voltage		kV	40.5
Rated insulation level	Lightning voltage (full wave)	kV	185
Rated insulation level	Power frequency withstand voltage (1min)	kV	95
Rated frequency		Hz	50
Rated current		A	630；1250；1600；2000
Rated break time	Power frequency withstand voltage (1min)	kV	20、25、31.5
Rated short circuit closing current (peak)		kV	50、63、80
Rated dynamic stability current (peak)		kV	50、63、80
4S heat stable current (effective value)		kV	20、25、31.5
Enclosure protection class	Vacuum breaker cabinet	mm	IP4X
Dimension (L * W * H)	SF6 gas short circuit cabinet	mm	1400×2200×2600

Conditions of use

- The altitude above sea level shall not exceed 1000m
- The ambient air temperature should not be higher than +40 degrees, or less than -10 degrees
- Relative humidity: daily average no more than 95%, monthly average no more than 90%;
- Saturated vapor pressure: daily average not more than 2.2kPa, monthly average not more than 1.8kPa
- The inclination with the vertical plane is not more than 5°, and the whole group of cabinets is relatively flat, in line with (GBJ232-2) standard
- Requirements in the absence of violent vibration and impact, electrical components will not be corroded, no conductive dust plac

Ordering instructions

> The customer shall provide the following information:
- Main circuit scheme diagram, secondary circuit system diagram and auxiliary circuit control mode
- Equipment layout drawing and distribution room layout drawing
- Brand and model of main electrical components of the equipment
- Inlet and outlet line mode. When bus bridge connection is needed between devices, data such as bus spacing and height from ground shall be provided.
- Other special requirements can be negotiated with Hengfengyou Electric

Our Advantages

- Authoritative product certification: ISO CE, CB, CCC, etc
- Perfect SQA quality management system to ensure high quality products
- Quick quotation, can provide electrical design services
- The delivery period is short, and the fastest delivery time is 15 days worldwide
- Perfect after-sales service system, so that customers buy worry-free
- Welcome customers to visit the factory guidance, provide OEM/ODM
